2.1. Modeling of Chemical Sensing

We start with considering the simplest situation that only a single type of ligand molecule exists in the environment (Figure 1). In this situation, a chemical communication system or a cell distinguishes whether the ligand molecule is the target ligand or non-target one by using receptor molecules, which work as chemical sensors for the environmental signal. The receptor R can detect the ligand L, and the ligand–receptor binding and unbinding reactions are described as follows:

where k₁(s⁻¹M⁻¹) and k₋₁(s⁻¹) are the reaction constants of the binding and unbinding reactions, respectively. The complex of the receptor R and the ligand L is denoted as C₀.

Figure 1

Schematics of a chemical communication system when (a) the target ligand molecule or (b) non-target one exists in the environment. The reaction constants of the binding and unbinding reactions are respectively k₁(s⁻¹M⁻¹) and k_−1*(s⁻¹) where * is T and N for the target ligand and non-target one, respectively. We assume that k_−1,T(s⁻¹) < k_−1,N(s⁻¹) because the non-target ligand is more likely to dissociate from the receptor.

We assume that the target and non-target ligands have similar sizes and structures. Then, we can assume that the difference between the target and non-target ligands is only the unbinding rate k₋₁ (Figure 1). If we denote the unbinding rates of the target ligand k_−1,T(s⁻¹) (Figure 1a) and that of the non-target one k_−1,N(s⁻¹) (Figure 1b), the unbinding rates satisfy k_−1,T(s⁻¹) < k_−1,N(s⁻¹) because the non-target ligand is more likely to dissociate from the receptor.

2.2. Zero-order Proofreading Model

If the target and non-target ligands are similar molecules, the difference in the unbinding rates among k_−1,T(s⁻¹) and k_−1,N(s⁻¹) is small. For reliable chemical communications, the system must amplify the small difference of the unbinding rate k₋₁. To this end, the following phosphorylation and dephosphorylation cycle was proposed in Kajita et al. [7] as an intracellular chemical reaction network that can amplify the small difference in k₋₁ (see also Figure 2):

After the formation of the ligand–receptor complex C₀, the receptor can be converted into the intermediate state of the complex denoted by C₁ with rate w(s⁻¹) via an irreversible reaction. The product R_P can be generated from C₁ with rate w. However, some of C₁ can be converted back to R + L due to the ligand dissociation from the receptor with rate k₋₁. Note that we assume that the two unbinding reactions, C₀ → R + L and C₁ → R + L, have the same rate k₋₁ [8–10]. This assumption is valid if the chemical modification of the receptor, which is carried out by the reaction C₀ → C₁, only affects the intracellular part of the receptor and does not affect the unbinding rate k₋₁. We also note that the unbinding reaction C₁ → R + L is an irreversible reaction for an error correction function, which is called kinetic proofreading [8–10]. The product R_P is covalently modified and activated receptor R, and R_P can be deactivated by an enzyme P. D denotes the complex of R_P and P. The reaction constants of the binding and unbinding reactions are k₂(s⁻¹M⁻¹) and k₋₂(s⁻¹), respectively. The receptor R is generated from D with rate k₃(s⁻¹).

Figure 2

Schematic diagram of the zero-order proofreading model [Equation (2)] in a chemical communication system. The receptors detect the ligands in the environment, then transmit the signal into the inside of the system using the chemical reactions. The system distinguishes whether the ligand is the target ligand or not by converting the unbinding rate k₋₁ into the amount of the product molecules [R_P] through the zero-order proofreading model.

2.3. Model Reduction Based on Michaelis–Menten Approximation

By assuming that each reaction follows the law of mass action, the dynamics of the zero-order proofreading model [Equation (2)] can be described by Ordinary Differential Equations (ODEs). To obtain an intuitive understanding of how the zero-order proofreading model amplifies the small difference among the target and non-target ligands, we perform a model reduction based on Michaelis–Menten approximation [11].

If the total concentration of receptor [R]_total:= [R] + [R_P] + [C₀] + [C₁] + [D] is much larger than those of ligand and enzyme, [L]_total:= [L] + [C₀] + [C₁] and [P]_total:= [P] + [D], [R_P]_total ≈ [R]_total ≈ [R] + [R_P] holds, where [X] denotes the concentration of molecule X, whose unit is [M]. At the quasi steady state, that is, d[C₁]/dt = d[C₀]/dt = d[P]/dt = 0, the dynamics of [R_P] can be described by the following ODE:

where V₁:= [L]_totalwα/(1 + α), V₂:= k₃[P]_total, K_m,1:= K₁/(1 + α), K₁:= (k₋₁ + w)/k₁, K₂:= (k₋₂ + k₃)/k₂, and α:= w/(k₋₁ + w).

The production speed of [R_P] can be decomposed into the positive and negative fluxes, which are denoted as J₁ and J₂, respectively. The definitions are

Thus, the net flux is given by J:= d[R_P]/dt = J₁ − J₂. These Equations (4) and (5) are called Michaelis–Menten equations [11].

The parameters K_m,1 and K₂ are the effective Michaelis–Menten constants of the positive and negative fluxes, respectively. Note that K_m,1 and K₂ respectively control the ligand and enzyme saturation levels. At the unsaturated condition, when K_m,1 >> [R_P]_total and K₂ >> [R_P]_total, Equations (4) and (5) become

These fluxes are approximately the first-order reactions with respect to [R_P], which are demonstrated in Figure 3a. On the other hand, at the saturated condition, when K_m,1 ≪ [R_P]_total and K₂ ≪ [R_P]_total, Equations (4) and (5) become

These approximated equations do not depend on [R_P], thus these are called zero-order reactions with respect to [R_P], which are also demonstrated in Figure 3b.

Figure 3

Fluxes of the activation and deactivation reaction cycle of the zero-order proofreading model [Equation (2)] when the system is in an unsaturated condition (a) and a saturated condition (b). The positive flux J₁ [Equation (4)] with the target ligand (red lines), with the non-target ligand (red dashed lines), and the negative flux J₂ [Equation (5)] (blue lines) are plotted as functions of [R_P]. The steady states with the target ligand are plotted as red circles, and the steady states with the non-target one are plotted as blue rhombuses in the figures. Here, K denotes the effective Michaelis–Menten constants, which controls the unsaturation level of J₁ and J₂, respectively, where K = K_m,1 = K₂. The displayed values of K are set for the target ligand, and k₋₁ and k₂ are obtained from the values of K. The other parameters are k₋₁ = 1 for the target ligand, k₋₁ = 2 for the non-target one, w = 1, k₋₂ = 10, k₃ = 1, [R]_total = 100, [L]_total = 3.5, and [P]_total = 1.

2.4. An Intuitive Understanding of the Zero-order Proofreading Mechanism

Next, we clarify the mechanism of how the saturation level affects the response of the zero-order proofreading model to the unbinding rate k₋₁. At the steady state, J₁ = J₂ holds. By solving J₁ = J₂ for [R_P], we can obtain the steady state concentration of [R_P], denoted as [R_P]^*. Because J₁ depends on the unbinding rate k₋₁, [R_P]^* also depends on k₋₁. This means that [R_P]^* changes depending on whether the ligand is the target or not. To investigate how the saturation level changes the difference in the steady-state concentrations [R_P]^* for the target and non-target ligands, we analyze the dependence of the fluxes, Equations (4) and (5), on the unbinding rate k₋₁. When the system is in unsaturated condition (Figure 3a), the small change in k₋₁ slightly affects J₁. Because of the small effect, the steady-state concentrations [R_P]^* for the target and non-target ligands do not differ largely. On the other hand, when the system is saturated (Figure 3b), even though the small difference in k₋₁ slightly changes the positive flux, J₁ ≈ V₁ = wα [L]_total/(1 + α) = w²/(k₋₁ + 2w), due to the zero-order reactions, the steady state concentration [R_P]^* largely moves. This is an intuitive understanding of how the zero-order proofreading model [Equation (2)] [7] can amplify the small difference of the unbinding rate k₋₁ between the target and non-target ligands by changing the saturation level.

Note that the highly nonlinear response due to the cycle reaction composed of the two zero-order reactions is called zero-order ultra-sensitivity [11,12]. Although the original model proposed by Goldbeter and Koshland [12] has the ultra-sensitivity to concentration variables ([L]_total and [P]_total in the zero-order proofreading model), the model cannot amplify the unbinding rate k₋₁. Our representation in Figure 3 clarifies how the zero-order proofreading model obtains the ultra-specificity to the target ligand by the nonlinearity to the unbinding rate k₋₁ based on the mechanism of the zero-order reaction.

3.1. Model Reduction based on Michaelis–Menten Approximation

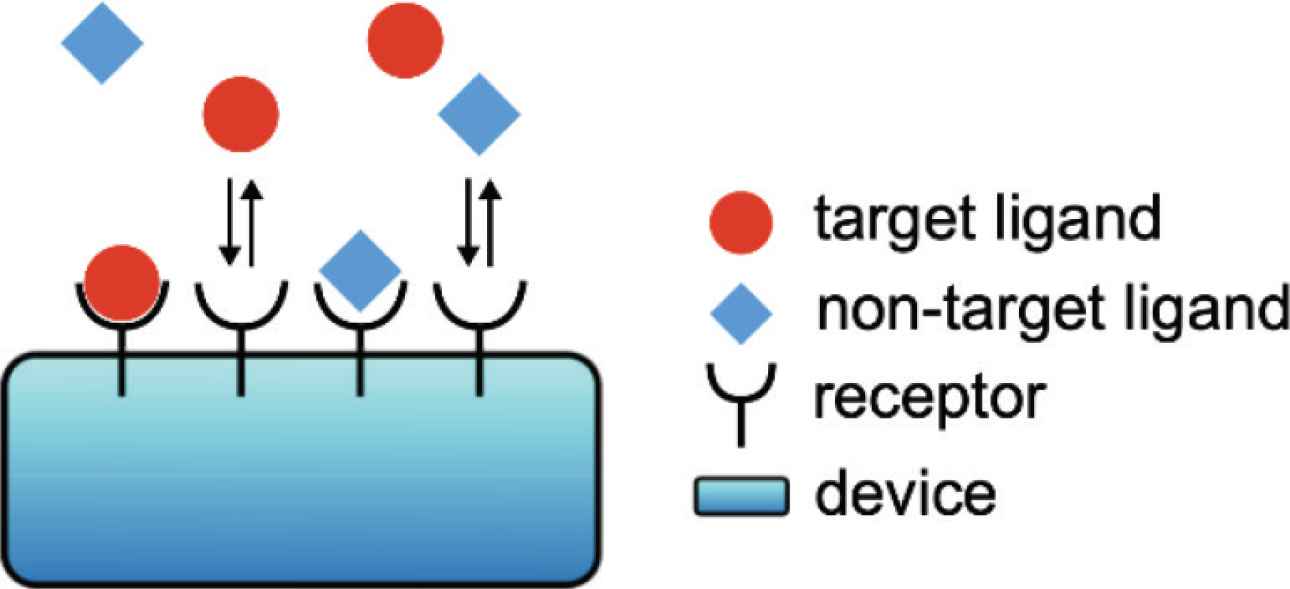

As we did the model reduction of the zero-order proofreading for the single type of ligand, we apply the Michaelis–Menten approximation to the zero-order proofreading model for two types of ligands [Equation (10)].

Assume that the dynamics of Equation (10) follows the law of mass action, then the dynamics can be described by ODEs. If we also assume that the total concentration of receptor [R]_total:= [R] + [R_P] + ∑_i,*[C_i,*] + [D] is much larger than those of the target ligand, [L_T]_total:= [L_T] + ∑_i,*[C_i,T], non-target ligand, [L_T]_total:= [L_T] + ∑_i,*[C_i,T], [L_N]_total:= [L_N] + ∑_i,*[C_i,N], and enzyme, [P]_total:= [P] + [D], then [R]_total ≈ [R] + [R_P] holds. At the quasi-steady-state, that is, d[C_1,*]/dt = d[C_0,*]/dt = d[P]/dt = 0 for * ∈{T, N}, the dynamics of R_P can be described by the following ODE with respect to [R_P]:

where V_1,T:= [L_T]_totalα_T/(1 + α_T), V_1,N:= [L_N]_totalwα_N/(1 + α_N), K_m,T:= K_1,T/(1 + α_T), K_m,N:= K_1,N/(1 + α_N), K_1,T:= K_1,N/(1 + α_T), K_1,N:= K_1,N/(1 + α_N), K₂:= (k₋₂ + k₃)/k₂, α_T:= w/(k_−1,T + w), and α_N:= w/(k_−1,N + w).

3.2. The Reliability of the Zero-order Proofreading Model

To evaluate the performance of the target ligand detection, we introduce the following quantities. First, we introduce the True Positive (TP) and False Positive (FP) by using the partial flux to produce the product molecule R_P by the target ligand and that by the non-target one, which are defined respectively by

By using TP and FP, we introduce the error η to evaluate the reliability of the target detection, which is defined as

For a reliable chemical communication, the balance between the accuracy and the intensity of output is necessary. For example, even if the error is low, but the output intensity from the sensory system is quite small, there is a risk that the output signal may disappear before the subsequent reactions are induced inside of the communication system. To evaluate the intensity of output, we introduce the output intensity O, which is defined by

where [R_P]^* is the steady-state concentration of [R_P] obtained from Equation (11) at the steady-state condition d[R_P]/dt = 0. Hereafter, by evaluating the error η and the output intensity O, we investigate the performance of the zero-order proofreading model.

To analyze the effect of the absence of non-target ligands, we introduce the fraction of the target ligand [13],

and evaluate the dependency of the error η and the output intensity O on r (Figure 6). Although the error η in the saturated condition (Figure 6a) is slightly higher than those of the unsaturated conditions (Figure 6b), there is a common tendency that the error η decreases with the increase of the target ligand fraction r. On the other hand, the output intensity O shows a qualitatively different dependency on r. The output intensity O in the saturated condition shows all-or-none response to r (Figure 6a). However, the response becomes gradual with a decrease in the saturation level (Figure 6b). Consequently, when the target ligand fraction is high (r > 1/2), the saturated system (K = 1) can balance the accuracy and output intensity (Figure 6a).

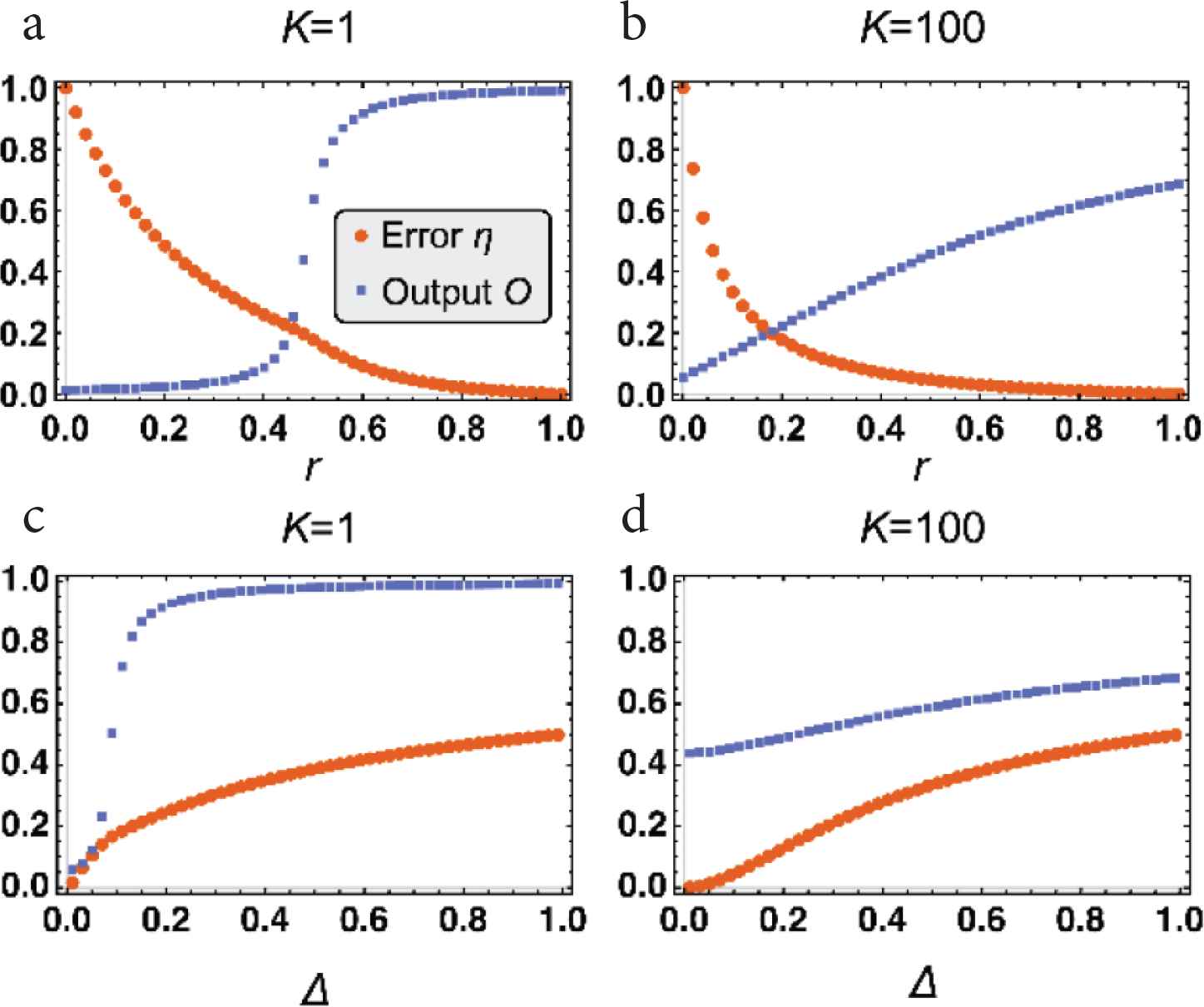

Figure 6

The error η (red dots) and the output intensity O (blue squares) are plotted as functions of the target ligand fraction r (a and b) and the unbinding rate ratio Δ (c and d) for different values of K, where K = K_m,T = K₂. The parameters are k_−1,T = 1, Δ = 1/10 (a and b), r = 1/2 (c and d), w = 1, k₋₂ = 10, k₃ = 1, [R]_total = 100, and [L]_total = 5. Note that k₁ and k₂ are obtained from the value of K, [L_*]_total for * ∈{T,N} is obtained from r (a and b), and k_−1,N is obtained from Δ (c and d).

To investigate the effect of similarity between the target and non-target ligands, we introduce the unbinding constant ratio

As same as in Figure 6a and b, the error of saturated condition (Figure 6c) is always slightly higher than those of unsaturated condition (Figure 6d). However, these two cases have the same tendency that the error decreases when the difference between the target and non-target ligands Δ becomes large. In contrast, the response of the output intensity O to Δ again shows a qualitatively different dependency on the unsaturation level K. When the system is saturated (Figure 6c), the response of O to Δ shows an all-or-none response. In addition, in this saturated condition, the system can generate large output O even when Δ is small, which means that the system can generate a large output without the help of the non-target ligand. With an increase in the unsaturation level (Figure 6d), the response becomes more gradual, and the system cannot generate large output O in the range where the error η is small (for e.g. Δ ∈ [0.0, 0.3]). As the results, at the saturated condition (Figure 6c), the system can balance the high accuracy and large output O around Δ ∈ [0.1, 0.2].

We also investigate the dependencies of the error η and output intensity O on both the target ligand fraction r and the unbinding constant ratio Δ for various saturation levels K (Figure 7), and confirm that the qualitatively same results in Figure 6 hold for the various values of K. Together with the results in Figures 6 and 7, the zero-order proofreading mechanism with saturating condition can balance the high accuracy and large output O at the slight cost of the error η.

Figure 7

The error η (a and c) and the output intensity O (b and d) are plotted as functions of the target ligand fraction r and the unsaturation level K (a and b), and the unbinding rate ratio Δ and the unsaturation level K (c and d), where K = K_m,T = K₂. The parameters are k_−1,T = 1, w = 1, k₋₂ = 10, k₃ = 1, [R]_total = 100, and [L]_total = 5. The others are Δ = 1/10 for (a and b), and r = 1/2 for (c and d). Note that k₁, k₂, [L_*]_total for * ∈{T,N} (a and b), and k_−1,N (c and d) are obtained in the same manner as in Figure 6.
