2.1. Oxygen Saturation

The human body inhales oxygen from the outside world to the alveoli and expels carbon dioxide through the pulmonary capillaries, while oxygen is sent into the pulmonary capillaries. When oxygen enters the body, it will flow to all parts of the body through the respiratory circulatory system to supply oxygen to the entire body organs. When O₂ is converted to CO₂, O₂ and CO₂ will undergo a second exchange in the capillaries, so that the cells of the whole organ can get sufficient oxygen.

Oxygen saturation is the percentage of the capacity of oxygenated hemoglobin (H_bO₂) in the total volume of hemoglobin (H_b). Oxygen saturation is often used to determine blood oxygen content in the human body. It is an important physiological parameter of respiration and circulation [1].

There are two forms of oxygen saturation: S_pO₂ refers to pulse oxygen saturation, S_aO₂ refers to arterial oxygen saturation, there is a proportional relationship between them. And S_pO₂ can be measured with noninvasive pulse oximeter, which is less harmful to human body.

2.2. Pulse Wave

The fluctuation of human arteries is referred to as pulse, which means that when the human left ventricle dilates, the blood is squeezed into the aorta, the blood vessels will block the blood, and the blood will flow into the vein for the first time.

As the blood penetrates into the aorta, the aortic compression will increase and forces the diameter of the aorta to expand, then the human body can feel this pulsation expansion phenomenon through the ring finger, wrist. At the same time, the pulse is expanded and contracted by the systolic function of the heart and the elasticity of the wall of the heart. When the ventricle is opened, the pressure of the arteries will increase. When the ventricle is closed, the pressure of the arteries will decrease. This kind of arterial fluctuation will generate a pulse wave.

There are two types of pulse wave acquisition methods: pressure and volume. This article mainly uses the photoelectric volume pulse wave.

The volume pulse wave is mainly a waveform obtained by converting the blood vessel volume into a change in light intensity. When blood flows through the microvessels by means of blood circulation, the blood volume exhibits pulsatility under cardiac pulsation.

Because of the expansion and contraction of the heart, the blood volume will be smaller. When the light source enters the human tissue, it will be detected by the photodetector while being absorbed by the tissue. During this process, vascular rhythm will promote the expansion and contraction of blood vessels, resulting in periodic changes in internal blood volume, which will lead to changes in light absorbed by blood. Finally, the pulse wave can be obtained by changing the light intensity.

Electrocardiographic signals, volume pulse wave signals (PPG), respiratory signals, and arterial blood pressure signals are all important physiological signals for studying human health. Compared with other signals, PPG signals can simply and non-invasively measure the physiological information of the human body, and can continuously measure. Detection with PPG signals has a great potential [2].

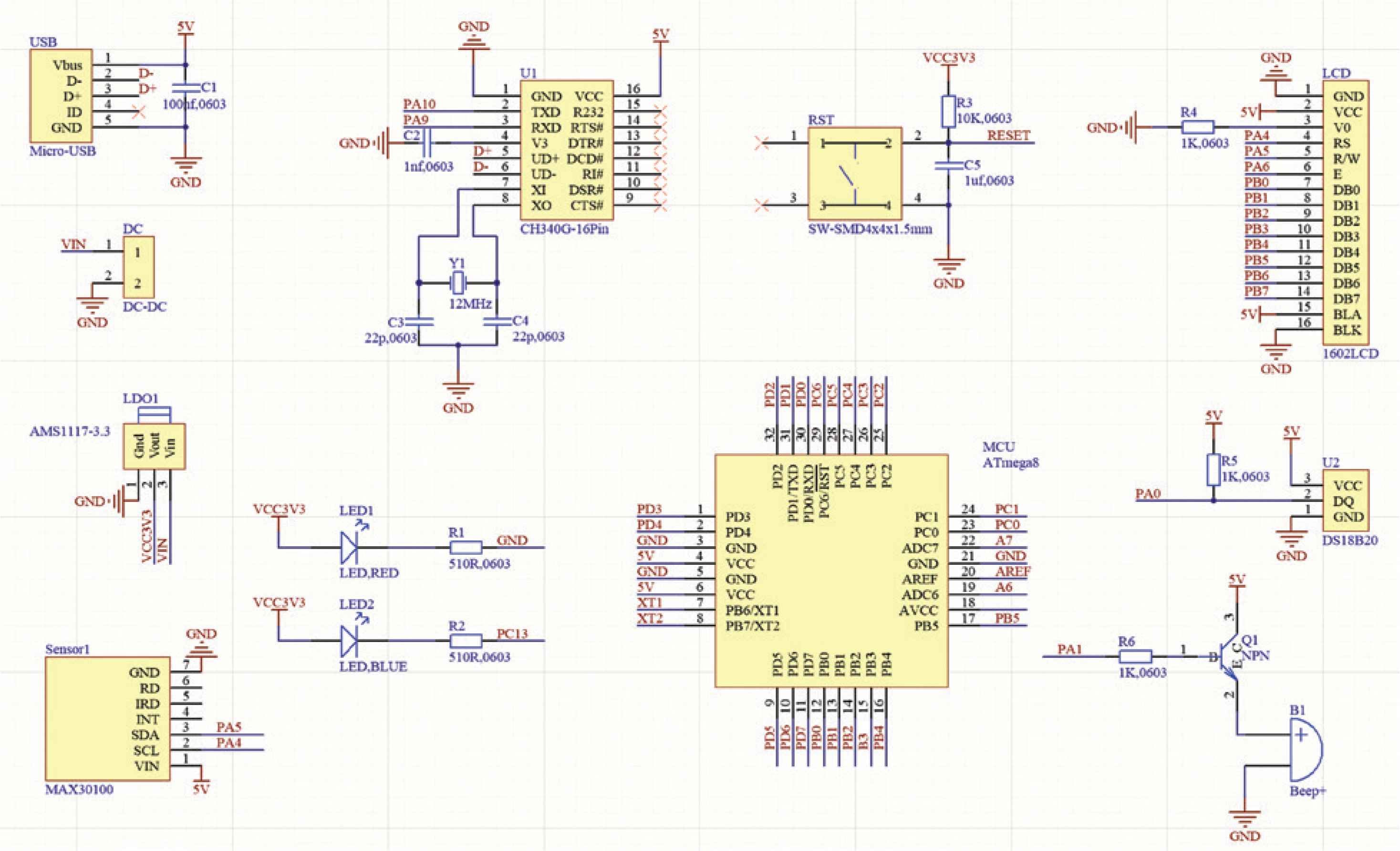

3.1. MAX30100 Module

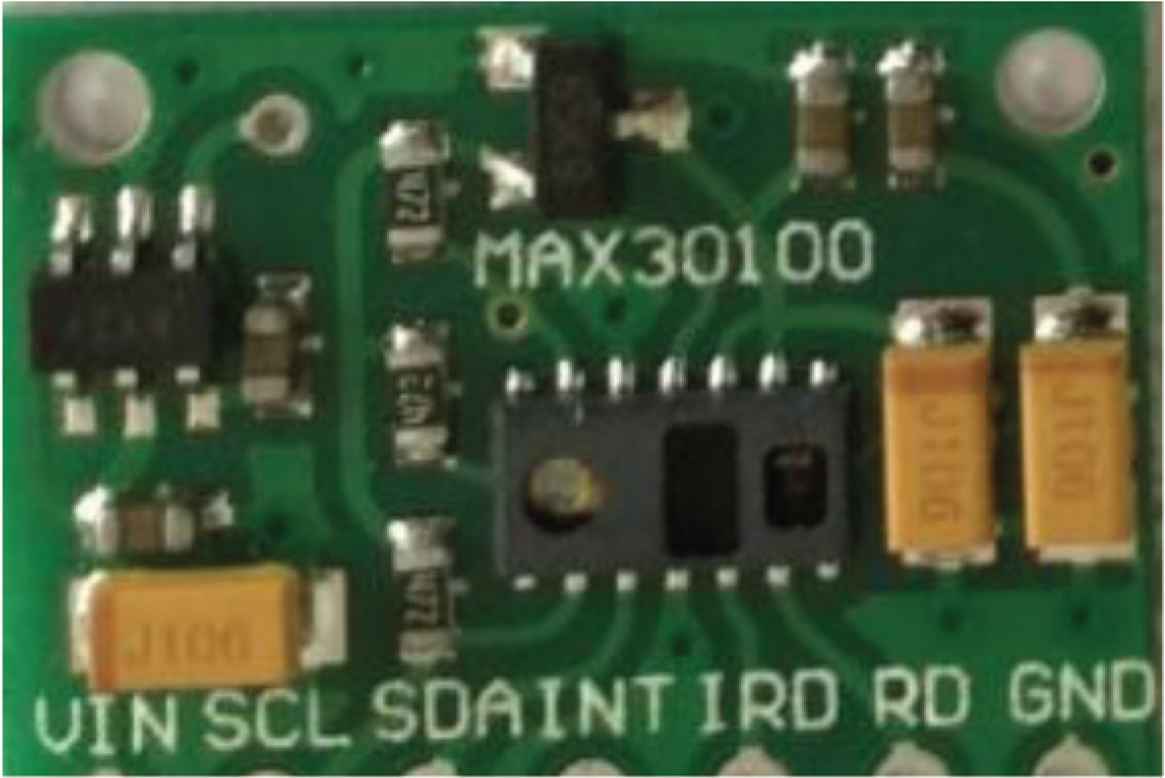

Two LEDs, a photodetector, optimized optics and low noise analog signal processor are integrated in the max31000 module, which can detect pulse oxygen and heart rate signals. The MAX30100 operates from 1.8 to 3.3 V power supplies. It can be widely used in fitness auxiliary equipment, medical monitoring equipment and wearable equipment, as shown in Figure 2.

Figure 2

MAX30100.

Pin description:

• •

  VIN: LED power input terminal, which is also the InterIntegrated Circuit (I2C) bus pull-up level. It is recommended to connect 3.3 V or 5 V.

• •

  SCL: clock connected to the I2C bus

• •

  SDA: connect to I2C bus data

• •

  INT: Interrupt pin of MAX30100 chip

• •

  IRD: IR LED ground terminal of MAX30100 chip

• •

  RD: RED LED ground terminal of MAX30100 chip

• •

  GND: ground wire

The integrated chip MAX30100 provides a standard I2C compatible communication interface, and external devices communicate through I2C. When SCL is a high level, SDA transitions generate a start signal from high to low level. First, the highest bit is sent out and the host sends a start signal. When SCL is high, SDA transitions from low to high level to generate a stop signal. The host ends the data communication by sending a stop signal. Because MAX30100’s I2C compatible communication interface needs to set SCL and SDA high, a pull-up resistor is added to the SDA and SCL pins in the acquisition circuit.

The working principle of this chip for measuring blood oxygen saturation and pulse is that the internal LED driver sets the timing in advance, alternately irradiates red light and infrared light, and then converts the reflected light signal into an analog electrical signal through a photodetector. The analog electric signal is output, and the signal is converted into digital signal after being amplified and filtered. Finally, the data is placed in the FIFO buffer [3].

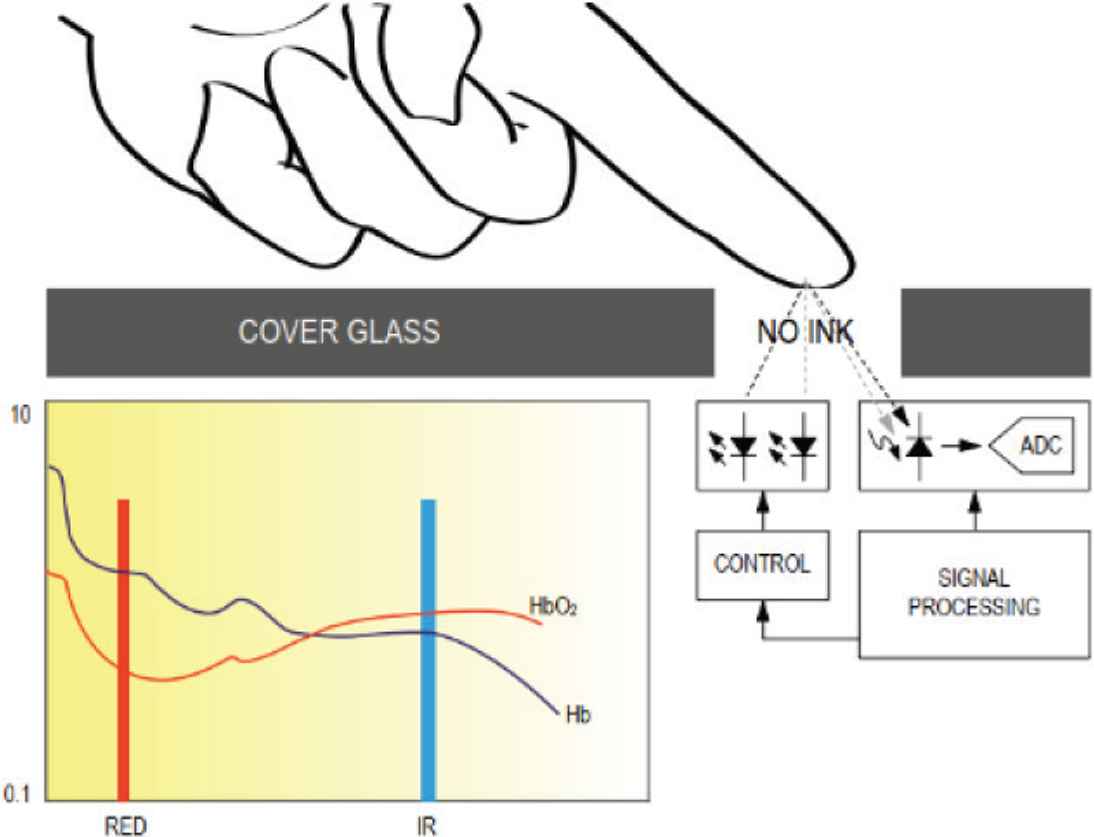

The MAX30100 sensor can be transferred to a microcontroller via an I2C digital signal to obtain a pulse wave signal. The working principle of measuring blood oxygen saturation and pulse is shown in Figure 3.

Figure 3

Working principle of measuring blood oxygen saturation and pulse.

3.2. MCU Main Control Chip

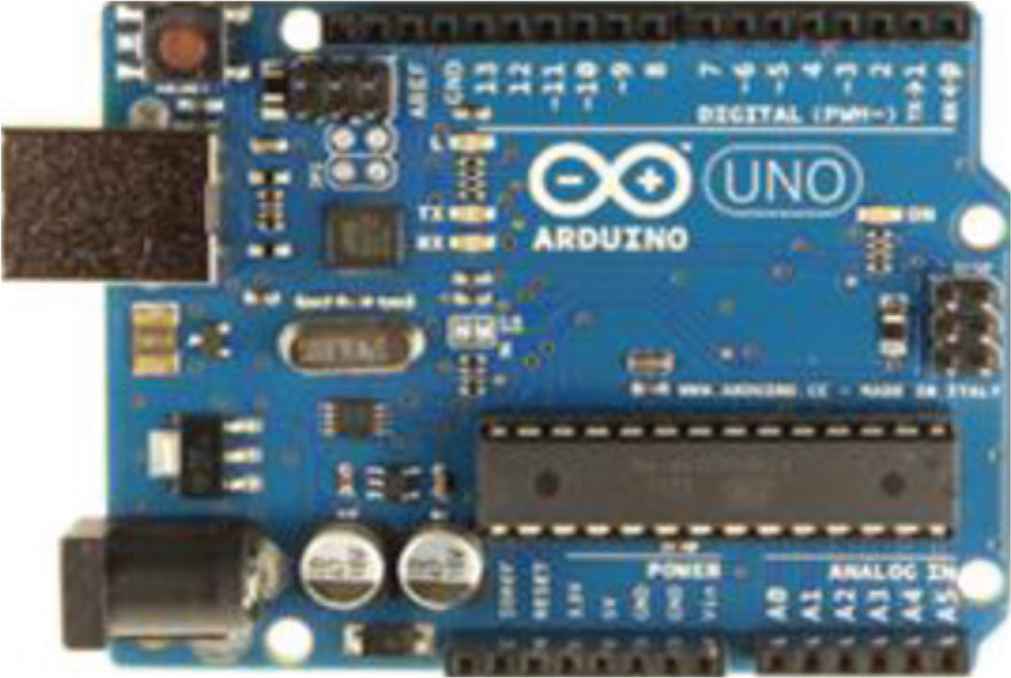

Atmega328 single chip microcomputer is the core of Arduino UNO control board. The Arduino uno microcontroller board is flexible and inexpensive, providing a variety of digital and analog inputs, serial interfaces, and digital and pulse width modulation (PWM) outputs [4]. The Arduino UNO control board consists of fourteen digital input and output pins, six analog input ports, USB access ports, power interface, data in circuit serial programmable (ICSP) interface, reset button, and a 16 MHz quartz crystal oscillator. The physical picture of the Arduino UNO control board is shown in Figure 4.

Figure 4

Arduino UNO control board.

3.3. DS18B20

The DS18B20 is a digital temperature sensor and is widely used in many occasions. The DS18B20 digital thermometer provides 9- to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor.

It has an operating temperature range of −55°C to +125°C and is accurate to ±0.5°C over the range of −10°C to +85°C. In addition, the DS18B20 can derive power directly from the data line (“parasite power”), eliminating the need for an external power supply.

1-Wire bus technology has the advantages of saving I/O resources, simple structure, low cost, convenient bus expansion and maintenance [5], so it is widely used in temperature monitoring systems and process monitoring systems inside buildings, equipment or machinery.

The DS18B20 chip relies on a single wire port communication through the Dallas single-bus protocol. When all devices are connected to the bus via a tri-state port or an open-drain port, the control line needs to be connected with a weak pull-up resistor. The external power supply mode is the best working mode of the DS18B20 temperature sensor. It works stably and reliably, has strong anti-interference ability, and the circuit is relatively simple. Therefore, this power supply is used in this design. Figure 5 shows the DS18B20 chip circuit connection method.

Figure 5

DS18B20 circuit connection method.

3.4. 1602 LCD Display

LCD1602 character liquid crystal display module is a dot matrix liquid crystal display module specially used for displaying letters, digits, symbols and so on. The character LCD module is mainly composed of LCD panel, controller, driver and bias circuit. It is an environmental friendly LCD module and has two kinds of transmission methods: 4- and 8-bit data. LCD1602 has a total of 16 pins, but there are three main pins used for programming, which are: RS (data command selection end), R/W (read and write selection end), E (enable signal). The programming in this design is mainly around these three pins to initialize, write commands, and write data. As shown in Figure 6, it is LCD1602 module.

Figure 6

LCD1602.
