1. INTRODUCTION

Instances of one-dimensional continua having geometries determined by minimization of a bending energy are ubiquitous in the mathematical, physical and biological sciences. These range from models of elongated beams used in construction to the flagella of microorganisms. In our everyday experience, we encounter a myriad of fibers, wires, cables, hoses and rods whose shapes are determined by this type of variational principle. One commonly encountered aspect in the study of these continua, which we henceforth refer to as rods, is that the governing energy may be anisotropic, i.e. it is dependent on the direction of the curve, as represented by the unit tangent vector T. Understanding the morphology of rods is essential since the geometry is a visual manifestation of the physical properties acting on the rod.

In a recent paper [1], we developed a methodology to study the equilibria arising from minimizing a specific type of anisotropic bending energy in two and three dimensions. In this model, the Young’s modulus, which measures the rod’s resistance to bending, is given by a continuous periodic function of the angle the tangent makes with a fixed direction. In the two dimensional case, the equations for the extremals of this bending energy are easily integrated and all examples can be explicitly found. We recall that in the isotropic case, this is usually achieved via elliptic functions but our method does not rely on this tool.

In the isotropic case, the problem of determining the bending deformations of rods was first formulated by J. Bernoulli in 1691. Later, D. Bernoulli, in a letter to L. Euler, suggested to study elasticae as minimizers of the bending energy. Then, L. Euler [2] (see also the translation [3]) achieved a classification of planar elasticae into nine specific types, although some partial results were already known to J. Bernoulli. For more details about the history of (isotropic) elasticae we refer to [1] and references therein.

How is Euler’s classification affected if the rod’s energy is anisotropic? This is the principal question we consider. The main result of the present paper is to show that for functionals possessing an essential symmetry, all of the types in Euler’s classification are present although the order in which they occur, in terms of a governing parameter, may be more complicated than in the isotropic case. Also, in the anisotropic case, there is an additional degree of freedom arising from quasi-rotations of each of the nine types.

The paper is organized as follows. In Section 2 we describe the materials and methods used for the development of the paper. In Section 3.1, we formulate the definition of anisotropic elasticae and discuss their properties. In particular, the representation formula is presented. Section 3.2 is devoted to the classification of anisotropic elasticae into nine different types. Then, in Section 3.3, we illustrate this classification for several choices of Wulff shapes. We finish with some conclusions in Section 4.

2. MATERIALS AND METHODS

As mentioned earlier, Euler’s classification of isotropic elasticae relied heavily on the use of elliptic functions in order to represent his elasticae. In the anisotropic case, this tool is no longer applicable however we had previously found a relevant representation formula which can be applied to represent the curves. Since our classification theory is centered around a particular type of curve, the lemniscate, it was necessary to prove its existence. Because of the generality in the type of functional we consider, these curves could not be parameterized exactly. Instead, we rely on standard techniques of mathematical analysis to prove their existence.

Constantly, while conducting this research, it was necessary to employ computer graphics in order to generate hypotheses about how the classification would proceed and to test them. Both the Maple and Mathematica softwares were used for this purpose in an essential way. This went substantially beyond there use to generate the graphics displayed in the article.

3. RESULTS

3.1. Anisotropic Elasticae

Let γ: S1R+ denote a sufficiently smooth function satisfying the following convexity condition. We require that if θ denotes the usual polar angle in the plane, then

1μ:=γθθ+γ>0
holds. The value γ(θ) represents the unit energy per unit length of a piece of an infinitesimal arc having tangent vector which makes an angle θ with the positive horizontal axis. The function μ represents the curvature of the plane curve given by
χ:=θ(γθiγ)eiθ,
where we have identified R2 with the complex plane C. The (convex) curve Ω defined by χ will be referred to as the Wulff shape. It was first introduced by the Ukrainian crystallographer Georg Wulff in order to model the equilibrium shape of a crystal [6]. Throughout this paper, we will say that the Wulff shape is symmetric if its curvature, μ, verifies the following symmetric condition
μ(π2θ)=μ(π2+θ). (1)

For purposes that will be clear later, we introduce the curve Ω which is a clockwise rotation of Ω through an angle π/2.

For any smooth, regular (planar) curve C: IR2, we denote by T its unit tangent and by N its unit normal with N = JT where J is counter-clockwise rotation by an angle π/2. We represent T by e and write γ(θ) as γ(T) when desired. If κ denotes the curvature of C, then the anisotropic curvature is defined by

λ(s):=κ(s)μ(θ(s)), (2)
where s represents the arc-length parameter of C.

As in [1], we define the anisotropic bending energy of C by

β[C]:=C(λ2+β)ds (3)
where βR. We regard β as a Lagrange multiplier which fixes the length of the curve.

Regardless of the boundary conditions, any equilibrium curve of β must satisfy its associated Euler–Lagrange equation. We will refer to such a curve as an anisotropic elastic curve for the energy density γ. Critical points of β, i.e. anisotropic elastic curves, are characterized in [1] by the conservation law

(λsμ)2+(λ2β)24=p2 (4)
with pR. If p = 0, we have that C is either a straight line or a rescaling of Ω.

On the other hand, if p ≠ 0, a representation formula for planar anisotropic elasticae was obtained in [1] [see formula (10)]

C=C(θ)=±θeiθ˜μ(θ˜)2psin(θ˜+θo)+β1dθ˜=±12pθeiθ˜μ(θ˜)sin(θ˜+θ0)+βdθ˜ (5)
with β:=β1/(2p). It will be useful to define an angle ω by
β=sin(π2+ω). (6)

If we differentiate (5) with respect to θ, we see that e is the unit tangent map of the curve into S1. Clearly, θ is restricted by

π2ωθ0θπ2+ωθ0,
i.e. the parameter β controls the range of the tangent map in S1.

Notice that, after rescaling if necessary, the constant of integration p in (4) and (5), may be assumed to be p = 1/2, as the following proposition shows.

Proposition 1.

Let C be a critical curve of β. Then, any rescaling of ratio r > 0, CC˜=rC, is a critical curve of r−2β for p˜2=r4p2.

Proof.

Let C be a critical curve of β for p ≠ 0, then the anisotropic curvature of C, λ, verifies the conservation law (4).

Now, if we apply a rescaling of ratio r > 0 to C, say C˜(rs)=rC(s), then its curvature κ˜ satisfies κ(s)=rκ˜(rs), where κ denotes the curvature of C. Moreover, by the definition of the anisotropic curvature (2), we get that λ(s)=rλ˜(rs).

Thus, substituting this in (4) we obtain

(λsμ)2+14(λ2β)2=r4[(λ˜μ)2+14(λ˜2r2β)2]=r4p˜2=p2,
where we are denoting the derivative with respect to the arc-length parameter of C˜ by ()′. q.e.d.

Moreover, if we apply a change of variable θ^=θ˜+θ0 in the representation formula (5), we obtain

C=C(θ)=±eiθ02pθθ0eiθ^μ(θ^θ0)β+sin(θ^)dθ^.(7)

This expression represents a quasi-rotation of an anisotropic planar elastica with θ0 = 0. In fact, if we rotate the Wulff shape Ω by the replacement γ(θ) → γ(θθ0), then the expression (7) above is just the rotation of an anisotropic planar elastic curve for the rotated Wulff shape. The parameter θ0 induces a transformation of the elasticae which is insignificant in the isotropic case.

3.2. Classification Results

In this section, we will classify planar anisotropic elasticae modulo rescaling and quasi-rotation for symmetric Wulff shapes. Therefore, as mentioned above, we can assume that p = 1/2 and θ0 = 0, so that the representation formula for anisotropic planar elasticae (5) now reads

C(θ):=±θeiθμ(θ)β+sinθdθ. (8)

The constant β is restricted by β > −1. For these values of β, there may be isolated points where (see [1])

λ2=β+sinθ=0.(9)

At these points, the curvature of C, κ, also vanishes and, therefore, they represent inflection points of the curve C(s).

A particular type of lemniscate appears in Euler’s classification of isotropic elastic curves given in [2]. This curve is the only closed elastica with non-constant curvature.

We begin our classification by proving the existence of an anisotropic analogue for this curve in the case that the functional possesses a symmetric Wulff shape. These examples appear whenever the inflection points of C(s) happen to be double points. In the anisotropic case, however, this lemniscate may not be unique. An example is given below of a functional having three distinct anisotropic lemniscates.

We will need the following technical lemma.

Lemma 1.

Let μ be any positive function. Then, the function ψ˜:(0,π)R defined by

ψ˜(ω):=π2ωπ2+ωsinθμ(θ)sinθsin(π2+ω)dθ
is continuous. Moreover, it has at least one zero in the interval (π/2, π).

Proof.

We begin by proving that the function ψ˜ is continuous in (0, π). For this purpose, we first choose an ε > 0 such that ω + ε < π. Then, after decomposing the domain in three different parts, we have that

ψ˜(ω+ε)ψ˜(ω):=I1+I2+I3,
where
I1=π2(ω+ε)π2ωsinθμ(θ)sinθsin(π2+ω+ε)dθ,
I2=π2+ωπ2+ω+εsinθμ(θ)sinθsin(π2+ω+ε)dθ,
and
I3=π2ωπ2+ωsinθμ(θ)(1sinθsin(π2+ω+ε)1sinθsin(π2+ω))dθ.

Consider the limit of the third integral, I3, when ɛ0. Note that

|I3|c3π2ωπ2+ω(1sinθsin(ω+ε+π2)1sinθsin(ω+π2))dθ
c3π2ωπ2+ω1sinθsin(ω+ε+π2)dθ<,
where c3 is a suitable constant. Then, since the integrand is non negative, we can apply the Dominated Convergence Theorem to obtain that I3 → 0 as ɛ0.

For the second integral, I2, we make the change of variable θ = π/2 + ω + t to obtain

|I2|c2π2+ωπ2+ω+ε1sinθsin(π2+ω+ε)dθ
=c20ε1sin(π2+ω+t)sin(π2+ω+ε)dt=c20ε1cos(ω+t)cos(ω+ε)dt,
where c2 is a constant. We then use the Taylor expansion of cos(ω + t) centered at t = ε,
cos(ω+t)=cos(ω+ε)+sin(ω+ε)(εt)+𝒪([εt]2),
to get
1cos(ω+t)cos(ω+ε)c˜21εt
for another constant c˜2. Hence,
|I2|c2c˜20ε1εtdt=c^2ε0,
as ε0, for a suitable constant
c^2
.

Moreover, a similar argument works for the first integral I1 and, therefore,

|ψ˜(ω+ε)ψ˜(ω)||I1|+|I2|+|I3|0

as ε0. Finally, note that the case ε < 0 can be treated similarly to the case ε > 0. This proves the continuity.

Now, we just need to check that in the interval (π/2, π) there is a change of sign, so that there exists a zero of ψ˜. First, we have that at ω = π/2, the integral ψ˜(π/2) simplifies to

ψ˜(π2)=0πsinθμ(θ)dθ
which is clearly positive.

Now take a δ > 0, such that δ < π/2, then at ω = πδ we have

ψ˜(πδ)=π2+δ3π2δsinθμ(θ)sinθsin(3π2δ)dθ
which can be bounded as follows. First, notice that, after suitable change of variable
ψ˜(πδ)=2π2+δ0sinθμ(θ)sinθsin(3π2δ)dθ+0πsinθμ(θ)sinθsin(3π2δ)dθ=J1+J2.

Then, taking the limit as δ0, we have that the second integral above, J2, converges to a positive number which is independent of δ, but the first one goes to −∞. This follows from the fact that for θ ∈ (−π/2 + δ, 0), sin θ is always negative and

sin(θ)sin(3π2δ)=sin(θ)sin(π2+δ)(θ[π2+δ])cos(π2+δ)
for θ ≈ −π/2. Combining this with the fact that 0 << μ << ∞, the result follows. q.e.d.

We deduce from this the following existence result.

Theorem 1.

For any symmetric Wulff shape Ω, there exists a constant βl ∈ (0,1) such that the critical curve of βl with non-constant anisotropic curvature, λ, is closed.

Proof.

Let 0 < β < 1 and denote by C(s) any critical curve of β with non-constant anisotropic curvature. The inflection points of C(s) are given by the solutions of (9). By (6), these points are, precisely, θ = π/2 ± ω depending on the value of ω ∈(π/2, π).

As noticed above, we have that the closed critical curve appears whenever the inflection points are precisely the double points of the curve C. This means that C(π/2 + ω) = C(π/2 – ω).

Define the (a priori complex-valued) function

ψ(ω)=i[C(π2+ω)C(π2ω)].(10)

The result follows by checking that there exists a value ωl such that ψ(ωl) = 0, since this ωl would give rise to a value βl [see (6)] whose associated critical curve is closed.

Note that ψ takes only real values. In fact, by using the representation formula for C (8), we have that for any ω ∈ (π/2, π),

ψ(ω)=π2ωπ2+ωieiθμ(θ)β+sinθdθ=π2ωπ2+ωsinθμ(θ)β+sinθdθR
where the second equality is obtained since cos(π/2 – t) = –cos(π/2 + t) and sin(π/2 – t) = sin(π/2 + t) for any value of t and applying the symmetric condition on the function μ (1).

Then, it is clear that ψ(ω)=ψ˜(ω) and, therefore, we can apply Lemma 1 to get that ψ(ω) has a zero in (π/2, π), as desired. q.e.d.

Up to quasi-rotations and rescalings there is at least one anisotropic elastica with non-constant anisotropic curvature associated to βl ∈ (0, 1) which we will refer to as an anisotropic elastic lemniscate (For some illustrations, see Figure 1).

Figure 1

Lemniscate elasticae (0 < βl = β < 1).

Now, we are in conditions to prove the classification of planar anisotropic elasticae.

Theorem 2.

Let C be a planar anisotropic elastica for a symmetric Wulff shape Ω, i.e. a critical curve of β. If the anisotropic curvature of C, λ, is constant, then C is either a straight line (λ = 0) or a rescaling of Ω (λ2 = β).

If λ is non constant, we have the following families depending on the parameter β > –1:

  1. 1.

    Orbit-like anisotropic elasticae, if β > 1.

  2. 2.

    Borderline anisotropic elasticae, if β = 1.

  3. 3.

    Wave-like anisotropic elasticae, if –1 < β < 1. In this case, we have the following sub-cases:

    1. (i)

      Multiloop anisotropic elasticae, if 0 < β = –sin(π/2 + ω) < 1 and ψ(ω) < 0.

    2. (ii)

      Lemniscate anisotropic elasticae, if 0 < β = βl < 1.

    3. (iii)

      Deep waves, if 0 < β = –sin (π/2 + ω) < 1 and ψ(ω) > 0.

    4. (iv)

      Rectangular anisotropic elasticae, if β = 0.

    5. (v)

      Shallow waves, if –1 < β < 0.

Proof.

Let C be a critical curve of β for a fixed β. The case λ constant has been explained before, giving rise to either straight lines or rescalings of Ω (see Figure 2). Thus, from now on, we assume that λ is not constant. We recall that θ represents the angle that the tangent to C makes with the horizontal axis. The proof is going to be divided in terms of the different possible values for β.

Figure 2

The Wulff shapes Ωn, for n = 2, 3, 4 and 6. Recall that the critical points with λ2 = β correspond to Ωn.

We begin by considering β > 1 (see Figure 3). In this case, (9) tells us that λ never vanishes, i.e., there are no inflection points on the anisotropic elastica C and, as a consequence, θ varies in the whole real line. Thus, we have orbit-like anisotropic elasticae.

Figure 3

Orbit-like anisotropic elasticae (β > 1).

If –1 < β ≤ 1, from (9) it is clear that at any interval of length 2π where θ varies there are exactly two inflection points. Therefore, θ is only defined in an open interval of length smaller or equal 2π starting at one inflection point, and finishing at the other one. This means that if we consider our anisotropic curve C to start at one of those inflection points, θ varies until reaching the following inflection point, then, θ goes back again.

Take now β = 1 (see Figure 4). In this particular case, the domain of definition for θ can be considered to be (–π/2, 3π/2). Now, since limθ → –π/2λ = limθ →3π/2λ = 0, we have that the curve C tends to a straight line at the end points. Moreover, the tangent at the end points tends to make an angle of –π/2 (3π/2, respectively) with the horizontal axis, i.e. C tends to a vertical line. This case gives rise to a single loop and, hence, it corresponds with borderline anisotropic elasticae.

Figure 4

Borderline anisotropic elasticae (β = 1).

Assume 0 < β < 1. For a fixed β, we define the function

Ψ^(t)=π2tπ2+tsinθ^μ(θ^)β+sinθ^dθ^.

By a similar argument as in Lemma 1, we have that above function is continuous for t ∈ (0, ω). Recall that ω is defined by (6) in terms of β, hence, it is a fixed value, ω ∈ (π/2, π). The limit of Ψ^(t) when t → 0 is clearly zero; while Ψ^(t)Ψ(ω), as tω. Moreover, we also have

dΨ^dt(t)=2costμ(π/2+t)β+cost
due to the symmetric condition (1). This means that Ψ^ increases as t varies from 0 to π/2. Then, it decreases until t = ω. Thus, depending on the sign of ψ(ω), we have different sub-cases:
  • Sub-case 0 < β < 1 and ψ(ω) < 0 (see Figure 5). In this case, the function ψ^(t) has exactly one change of sign which means that, between any two consecutive inflection points, there is a double point, i.e. we have multiloop anisotropic elasticae.

  • Sub-case 0 < β < 1 and ψ(ω) = 0 (see Figure 1). This case occurs when β = βl and the associated anisotropic elastica is a lemniscate. The existence is guaranteed in Theorem 1.

  • Sub-case 0 < β < 1 and ψ(ω) > 0 (see Figure 6). Contrary to the multiloop case, here, we have that Ψ^ is always positive and, thus, there are no self-intersections between consecutive inflection points. This gives rise to deep waves.

Now for β = 0 (see Figure 7), the domain of the tangent map on S1 is a semicircle, since θ ∈ (0, π). Hence, this corresponds with the rectangular anisotropic elasticae. Note that in this case, the anisotropic elastica cuts the vertical axis orthogonally.

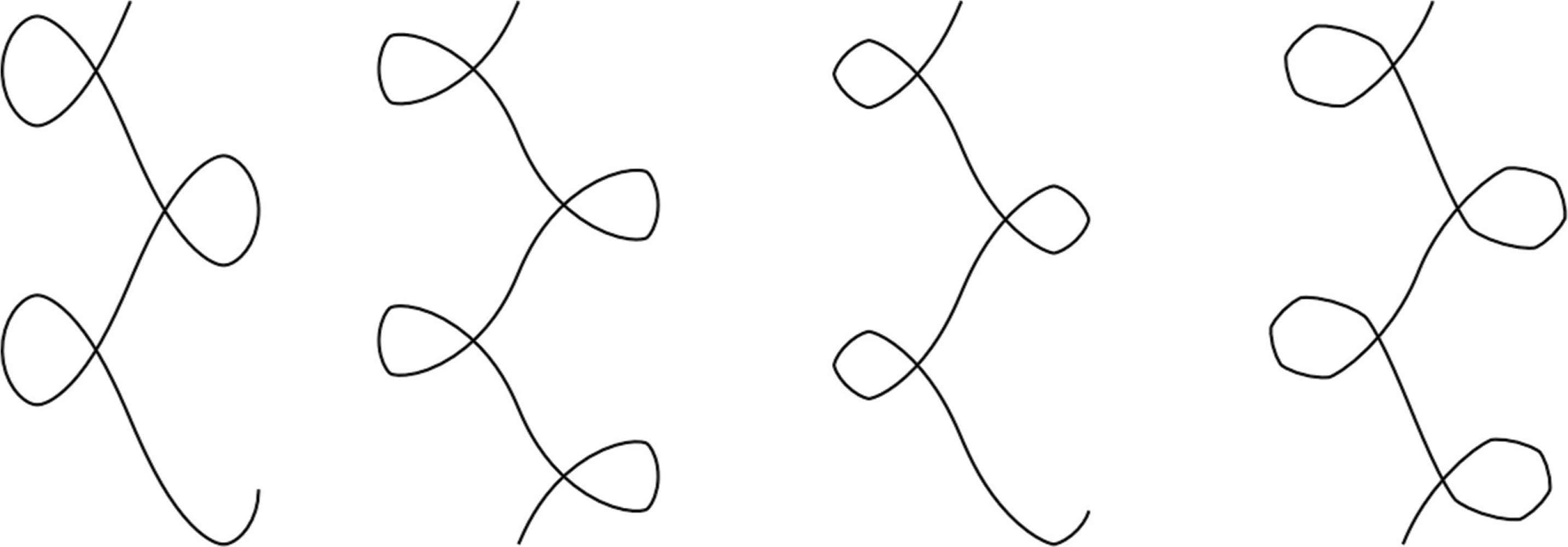

Figure 5

Multiloop anisotropic elasticae (0 < β < 1 and ψ(ω) < 0).

Figure 6

Deep waves (0 < β < 1 and ψ(ω) > 0).

Figure 7

Rectangular anisotropic elasticae (β = 0).

Finally, for the case –1 < β < 0 (see Figure 8), the arc-length of the domain of the tangent map is smaller than π, producing shallow waves. This finishes the proof. q.e.d.

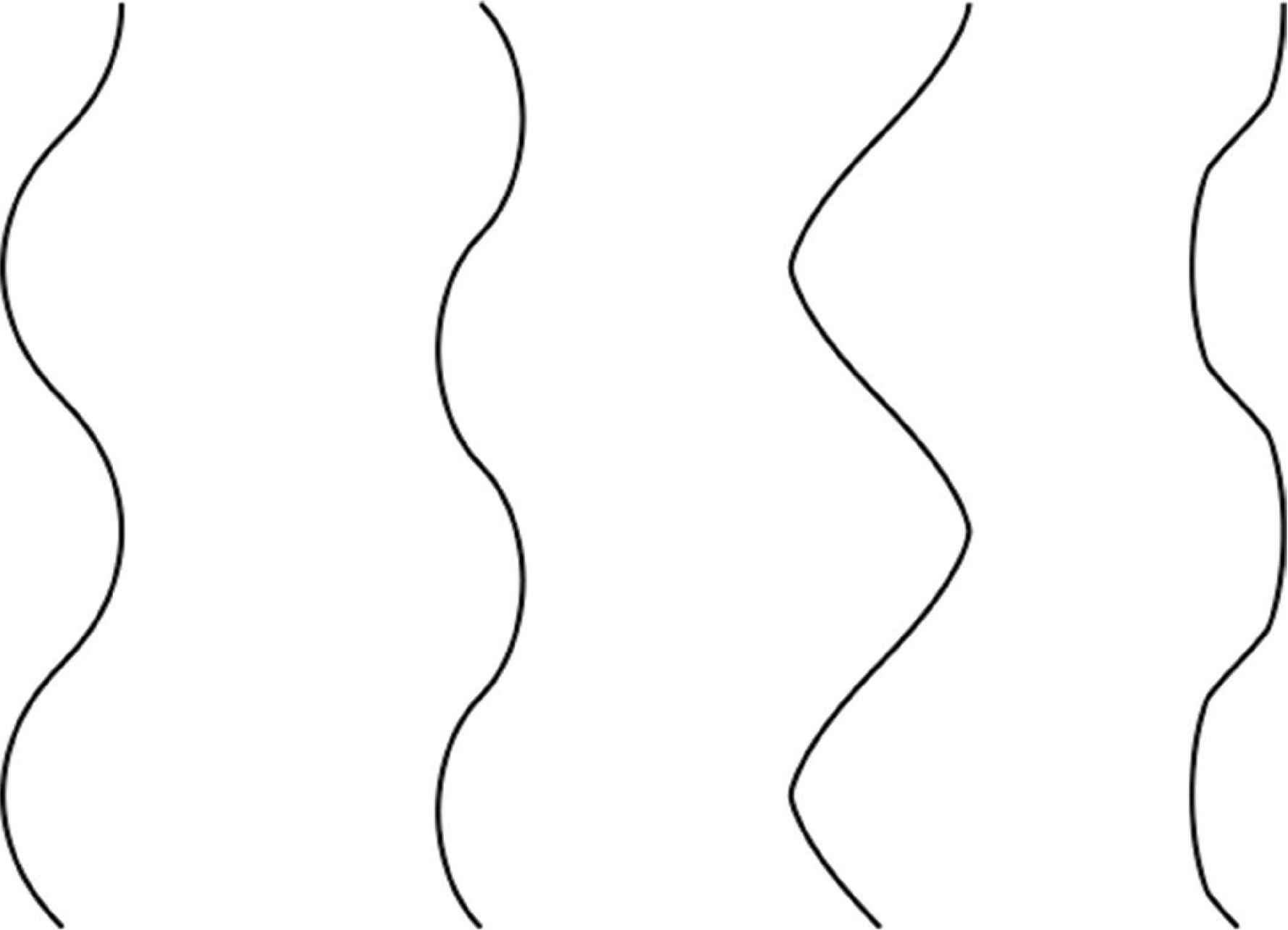

Figure 8

Shallow waves (– 1 < β < 0).

For many choices of γ, the types of elasticae vary ‘monotonically’ as β decreases. However for others, we observed that this is not the case due to some oscillation in the sign of ψ(ω). In particular, Figure 9 shows three distinct lemniscates which occur for the functional having density γ16:= 1 + cos(16 θ)/(16)2. The Wulff shape for this functional is a smoothed 16-gon (See Section 3.3 for more details).

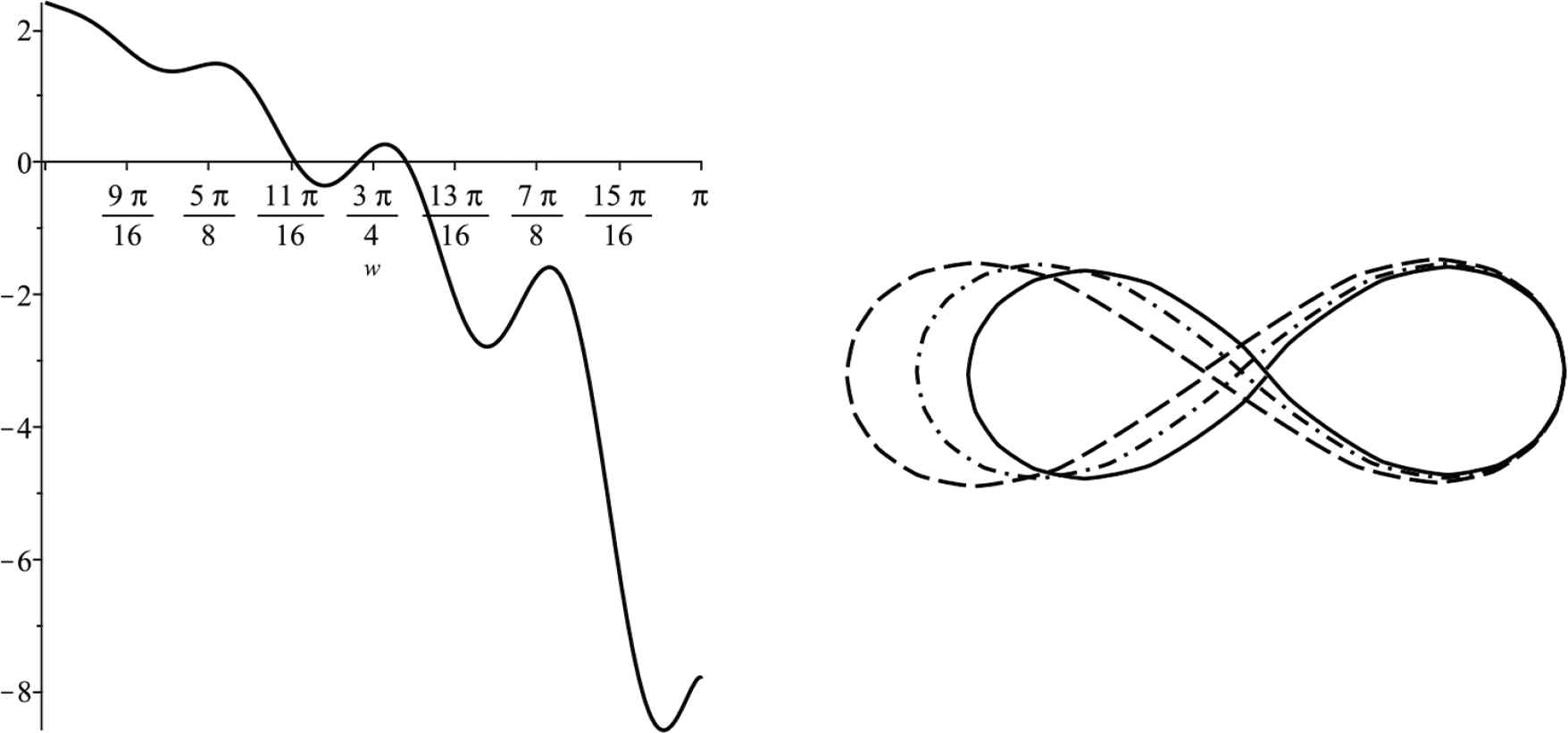

Figure 9

The function ψ(ω) for the density γ16 (Left); and the three distinct lemniscates (Right) (Dashω177π256,dot dashω189π256,solidω397π512).

As a final remark, observe that the existence of anisotropic elastic lemniscate is not guaranteed if the Wulff shape does not verify the symmetry condition (1), since, in this case, ψ(ω) ∉ R [see (10)] and therefore the analysis made in Lemma 1 is not applicable. Indeed, consider the non-symmetric Wulff shape Ω^ defined by the following function μ

1μ:=11516sin(4θ).

Then, as suggested in Figure 10 there are no anisotropic lemniscates for this Wulff shape Ω^. However, the other eight types of elasticae in the classification are present in this case.

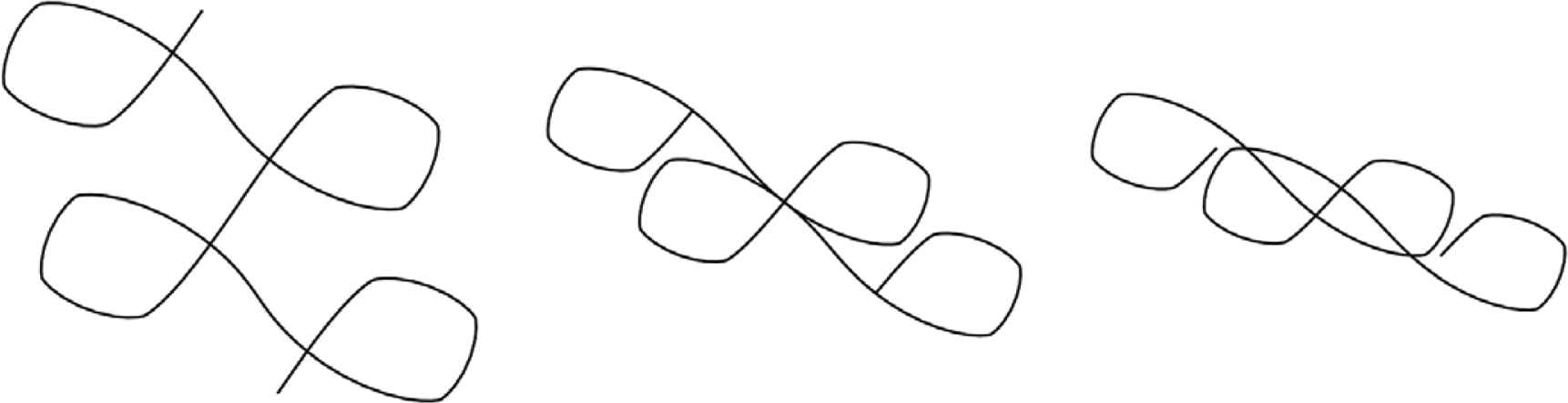

Figure 10

Evolution of anisotropic elasticae for Ω^ from multiloop (Left) to deep wave (Right). The intermediate step (Center) is not an anisotropic elastic lemniscate.

3.3. Illustrations

In order to obtain some illustrations of above classification, we consider the following densities. If n is an even positive integer, we define

γn=γn(θ):=1+cos(nθ)n2.

Then,

1μ=γθθ+γ=1(n21n2)cos(nθ).

On the other hand, if n is an odd positive integer, γn is going to be

γn=γn(θ):=1+sin(nθ)n2.

In these cases,

1μ=γθθ+γ=1(n21n2)sin(nθ).

We will refer to the Wulff shape for the density γn as Ωn. The distinction between the odd and even cases is done so that the function μ verifies the symmetric condition (1). Several illustrations of these Wulff shapes and the different types of associated anisotropic elasticae, produced using (8) are shown in Figures 18.

To obtain a greater variety of Wulff shapes, we will use the following construction. Take the polar coordinates (r, θ), where the radial function r = r(θ) is given by

r(θ)=(|cos(maθ4)a|na+|sin(mbθ4)b|nb)1/n
for real constants a, b, ma, mb, na, nb and n. This formula known as the superformula was introduced by Gielis to study naturally occurring shapes [5,6]. In particular, for some choices of specific values of the constants, the corresponding curve is convex, so that it can be used to generate different Wulff shapes.

We are going to choose the following constants b = 1, a = ma = mb = na = nb = n = 4 and denote by Ω˜ the corresponding Wulff shape. From Figure 11 it is clear that Ω˜ is convex and possesses the correct symmetry. We can compute its curvature, μ, using the standard formula

μ(θ)=2[r(θ)]2+r2(θ)r(θ)r(θ)([r(θ)]2+r2(θ))3/2.

The rotated Wulff shape together with its associated anisotropic elasticae are shown in Figure 11. As before, these anisotropic elasticae are obtained using the integral expression (8).

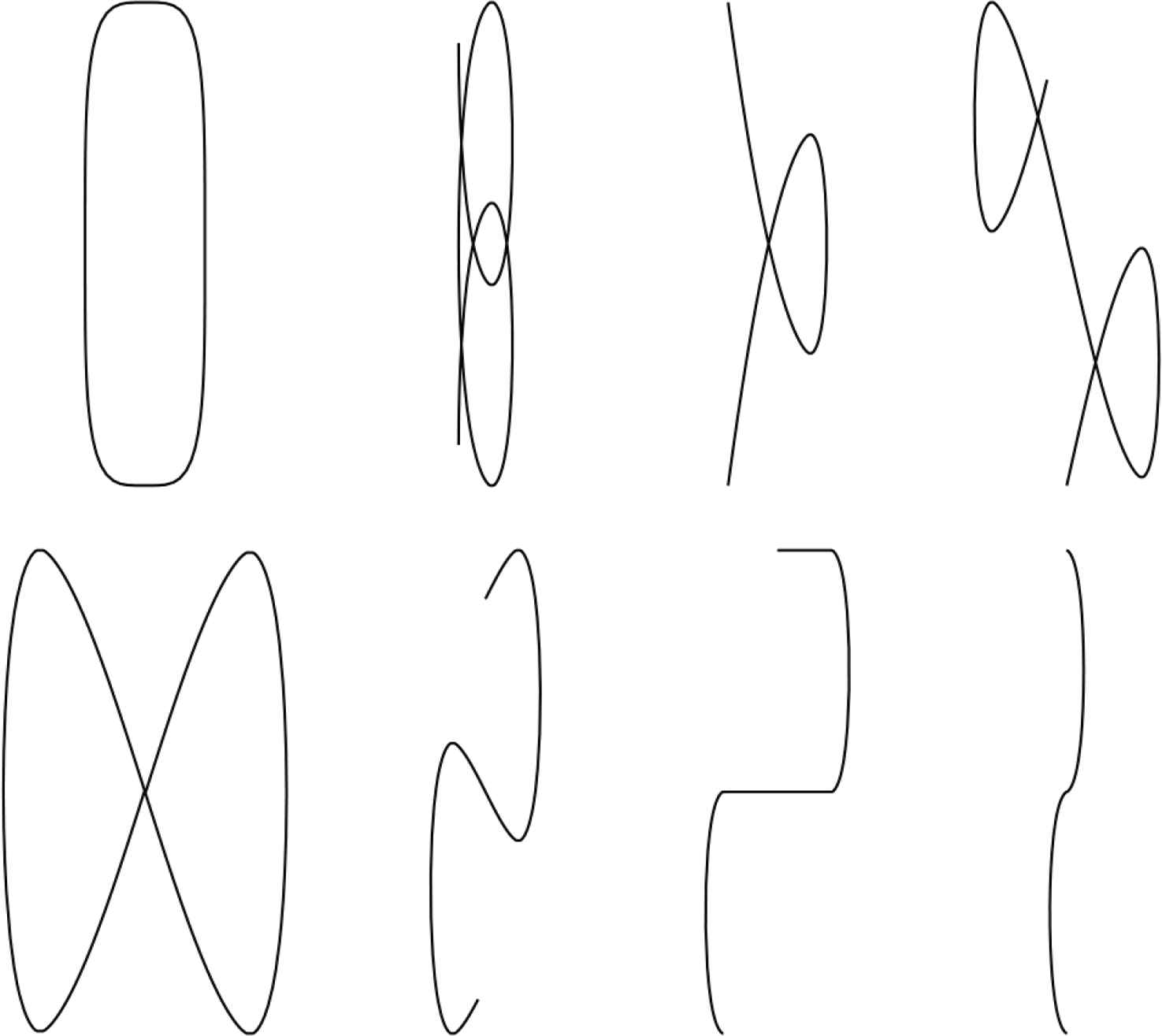

Figure 11

Anisotropic elasticae for the Wulff Shape, Ω˜, as the parameter β decreases. The first figure represents the rotated Wulff shape, Ω˜.

4. CONCLUSION

We have shown that, assuming the Wulff shape of the functional has the right symmetry, all types of elasticae found by Euler have an analogue in the anisotropic case. In addition, images of these curves are easily accessible via computer graphics.
