Journal of Nonlinear Mathematical Physics

Volume 26, Issue 4, July 2019, Pages 555 - 568

A simple-looking relative of the Novikov, Hirota-Satsuma and Sawada-Kotera equations

Alexander G. Rasin
Department of Mathematics, Ariel University, Ariel 40700, Israel,
Jeremy Schiff
Department of Mathematics, Bar-Ilan University, Ramat Gan, 52900, Israel,
Received 9 April 2019, Accepted 4 May 2019, Available Online 9 July 2019.
10.1080/14029251.2019.1640465How to use a DOI?
Integrable equation; Novikov; Hirota-Satsuma; Sawada-Kotera; Bäcklund transformation

We study the simple-looking scalar integrable equation fxxt − 3(fx ft − 1) = 0, which is related (in different ways) to the Novikov, Hirota-Satsuma and Sawada-Kotera equations. For this equation we present a Lax pair, a Bäcklund transformation, soliton and merging soliton solutions (some exhibiting instabilities), two infinite hierarchies of conservation laws, an infinite hierarchy of continuous symmetries, a Painlevé series, a scaling reduction to a third order ODE and its Painlevé series, and the Hirota form (giving further multisoliton solutions).

© 2019 The Authors. Published by Atlantis and Taylor & Francis
Open Access
This is an open access article distributed under the CC BY-NC 4.0 license (

1. Introduction

Early in the history of integrable systems it was found that there are remarkable transformations connecting different equations [1]. These “hidden connections” abound, and complicate classification attempts, see for example [2]. But, in general, discovery of such a connection is very useful, as typically most of the integrability properties of an equation can be mapped to other related equations. Thus, for example, more research focuses on the KdV equation than on the (defocusing) MKdV equation, and on the NLS equation rather than the many systems related to it by Miura maps (see Figure 1 in [3]). Naturally, the focus tends to fall on the equation in the class which is simplest to write down.

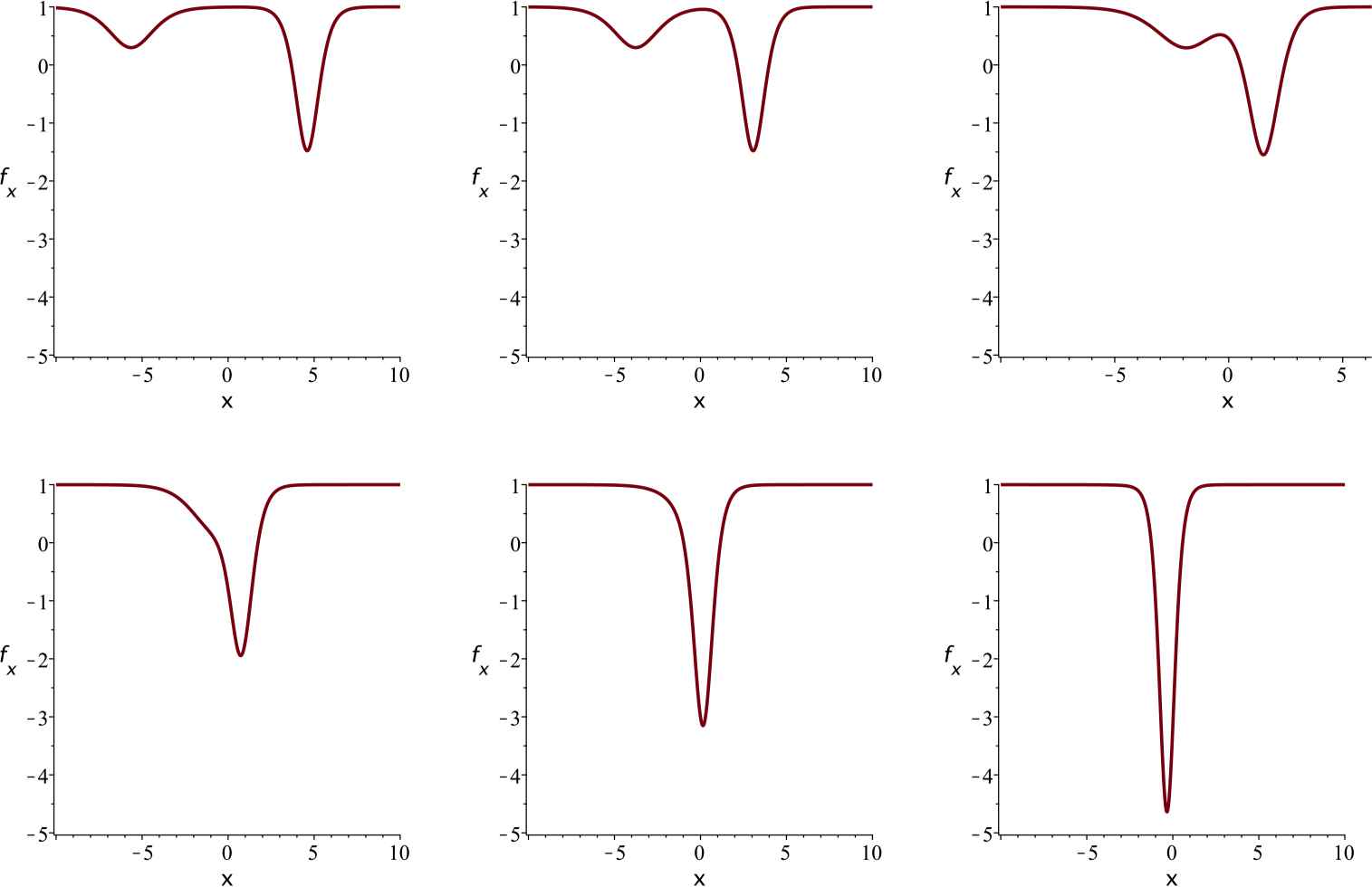

Fig. 1.

The merging soliton. Parameter values are β = 1 and θ = 1, so λ1, λ2, λ3 ≈ −1.53, −0.35, 1.88. The constants C1, C2, C3 are all taken to be 1. Plots of fx, with f given by (3.1), displayed for times t = −3, −2, −1, −0.5, 0,1.

One of the simple, archetypal equations in integrable systems theory is the Camassa-Holm equation, the first integrable equation to be discovered with peakon solutions [4, 5]. This was followed by the Depasperis-Procesi equation [6,7] and by the Novikov equation [8,9]


In [10] we announced that the Novikov equation is related, by a chain of transformations, to the particularly simple equation

which we called the associated Novikov equation (aN). We believe that [10] is the first time (1.3) was written down explicitly as a single equation. However, it is trivial to derive from equations (2.6a) and (2.8) in [11] by introducing a potential (writing W = −Fτ, U = 3Fy) followed by a rescaling (and changes of names of the variables). See also [12], equation (9). Matsuno derived a different scalar equation from equations (2.6a) and (2.8) in [11]. In our notation, note that we can solve (1.3) to find ft in terms of g = fx. Differentiating this with respect to x and rearranging gives
cf. (2.11) in [11]. Note also that by rescaling t it is possible to replace the constant term in (1.3) by any non-zero constant. The equation with vanishing constant term, i.e.
was studied in [13], and we will discuss this equation further at the end of this introduction.

Since the derivation of the various equations in [11] from the Novikov equation is clear, we do not give the full derviation of aN from Novikov here. Proceeding from (1.3), however, make the substitution

where β ≠ 0 is a constant, to obtain

Differentiating with respect to x and writing h = rx, so r=xh(y,t)dy, we obtain


Modulo rescalings, this is equation (2) in [14], known as the Hirota-Satsuma equation. In [11], Matsuno established the connection between his equation (1.4) and the Hirota-Satsuma equation.

Thus we see that aN is related to the Novikov equation (1.1)(1.2), the Matsuno equation (1.4) and the Hirota-Satsuma equation (1.6). We note, though, that aN is rather more simple in form than any of these other equations, and thus is surely the natural first object for study. In fact there is a further equation to which aN is related, though this time it is not by a sequence of transformations. We recall that η is an infinitesimal symmetry for (1.3) if, as a consequence of (1.3), f + εη is a solution of (1.3) up to linear order in ε. That is, if


A direct calculation shows that η=115fxxxxx+fxfxxxfx3 satisfies the necessary condition. It follows that the flow

(now f is being considered as a function of three variables, x, t and s) is consistent with the flow defined by aN. This last equation is a potential form of the Sawada-Kotera equation (SK), viz. equation (44) in [15]. The link between aN and potential SK is not that there are transformations follows that the flow from one to the other, but they define consistent flows, i.e. they belong to the same hierarchy. Although the link is less direct, integrable equations in the same hierarchy also share properties, such as conservation laws and soliton solutions. The fact that the Novkiov equation is related to the SK hierarchy was already established in [9], see also [16]. Although in this case aN has a complication not in the potential SK flow, in that in equation (1.7) only a single t derivative term appears, aN remains superficially simpler, so we would argue that aN is the right equation to study first.

We have thus seen in this introduction how aN, equation (1.3), is related to numerous equations of interest, but is, at least superficially, the simplest of all. The aim of this paper is to present the basic properties of aN, without reference to any other equation, with the intention that ultimately, aN can be used as a base for study of the other equations. In section 2 we present the Lax pair and Bäcklund transformation (BT) for aN. The Lax pair, which we derived from the Lax pair for the Novikov equation given in [9], is identical to that given for (1.5) in [13]. In section 3 we present the basic soliton solutions of aN, and also solutions describing the “merger” of two solitons, obtained using the BT. However, the BT also gives rise to a solution showing that at least some of the basic soliton solutions are unstable. This limits the possible physical relevance of aN, but on the other hand provides a simple analytic example of the phenomenon of soliton instability, the possibility of which is often overlooked. In section 4 we discuss conservation laws, giving two infinite hierarchies. In section 5 we consider symmetries, but only succeed to give one infinite hierarhcy. We believe a second hierarchy should exist (in parallel to what we have found for conservation laws), but leave this as an open problem. We show the existence of a second infinite hierarchy in the case of the Camassa-Holm equation to demonstrate that this is feasible. In section 6 we show the Painlevé property for aN. In section 7 we discuss a scaling reduction to a third order ODE and give its Painlevé series and the simplest solution. In section 8 we give the Hirota form of aN and a formula for multisoliton solutions. In section 9 we conclude.

Before leaving this introduction, we briefly discuss equation (1.5) that was studied in [13]. As mentioned above, by rescaling t it is possible to replace the constant in (1.3) by any nonzero constant, and thus it is possible to derive properties of the equation (1.5) from those of the equation (1.3) by a limit process. In this way, for example, it is possible to find (several families of) soliton solutions of the (1.5). For a reason that will become clear in the next section, there is a single Lax pair for the equation, irrespective of the value of the constant term. However, in general we are not aware of a process to derive properties of (1.3) from those of (1.5) and we believe the two equations are nonequivalent. Furthermore, it is (1.3) that arises in the context of the Novikov equation. Thus in this paper we study (1.3).

2. Lax Pair and Bäcklund transformation

The Lax pair for aN is


As mentioned above, this Lax pair can be derived, through the necessary transformations, from the Lax pair for the Novikov equation given in [9]. In fact the consistency condition for the Lax pair is not exactly equation (1.3), but rather its x-derivative. This explains why it also provides a Lax pair for the equation (1.5), as studied in [13], and indeed it coincides with the Lax pair given there. The first equation of the Lax pair coincides with the first equation of the Lax pair for SK [17].

The Bäcklund transformation (BT) for aN is

where v satisfies the following system:

The second equation can be rewritten


The equation (2.4) has appeared before in [18, 19] as part of the BT for SK. The BT (2.4,2.5) is connected to the Lax pair (2.1,2.2) via the substitution


By the relevant transformations, this BT is equivalent to the BT given by Yadong Shang [20] for the Hirota-Satsuma equation.

3. Soliton and merging soliton solutions

Using the standard procedure for finding travelling wave solutions shows that aN has soliton solutions


We call this a soliton solution as the associated profile g = fx of the Matsuno equation (1.4) has a sech2 profile, on the nonzero background β (in fact the profile is −sech2, so it might more correctly be called an antisoliton). Note that here β ≠ 0 and c, the wave speed, are arbitrary, subject to the constraint


So if β is negative, then 0<c<1β2, and if β is positive then either c is negative or c>1β2. In the solution it is possible to replace tanh by coth to get a singular soliton solution.

Application of the BT (2.3), (2.4), (2.5) to the “trivial” solution

gives the solution
where C1, C2, C3 are constants and λ1, λ2, λ3 are the roots of the cubic equation λ3 = 3βλ + θ. The analysis of these solutions proceeds in a similar manner as in [10,21]. We restrict the analysis to the case 4β3 > θ2, so the roots λ1, λ2, λ3 are real and distinct; note, in particular, that this implies β > 0. When one of the constants Ci vanishes, say C3, we recover a travelling wave solution with speed c=λ3βθ, which is a soliton if C1, C2 have the same sign and a singular soliton if they have different signs. It is possible to check that for a suitable choice of θ this gives all possible speeds c with c < 0 or c>1β2.

Continuing now to the case that all the three constants C1, C2, C3 are nonzero, if all of them have the same sign then evidently the solution (3.1) will be nonsingular, but if there are differing signs then we expect a singularity. Without loss of generality assume λ1 < λ2 < λ3. Then it can be checked that for θ > 0 the solution with C1, C2, C3 all of the same sign describes solitons of speeds λ1βθ and λ3βθ merging to give a soliton of speedλ2βθ, while for θ < 0 the opposite happens, with the soliton of speed λ2βθ splitting into two solitons of speeds λ1βθ and λ3βθ. See Figure 1 (for the case θ > 0). Note that λ1 + λ2 + λ3 = 0 (so in the mergers there is “conservation of speed”), and λ1λ2λ3 = θ. So in general λ1 < 0 and λ3 > 0, while the sign of λ2 is opposite to that of θ.

When C1, C2, C3 have differing signs, various scenarios emerge. Figure 2 shows a case of expulsion of a soliton by a singular soliton. However, the most interesting case is when θ < 0 and the sign of C2 differs from that of C1 and C3. In this case the solution describes the splitting of a left moving soliton into a pair of singular solitons, see Figure 3. For large negative t this solution is a small perturbation of the soliton solution obtained by setting C2 = 0. However, as t increases, the small perturbation grows, ultimately causing a divergence. Thus we deduce that the original soliton solution is unstable. A brief calculation shows this only happens for solitons with 12β2<c<0. The stability of solitons for other values of c (and for the case of negative β) remains open.

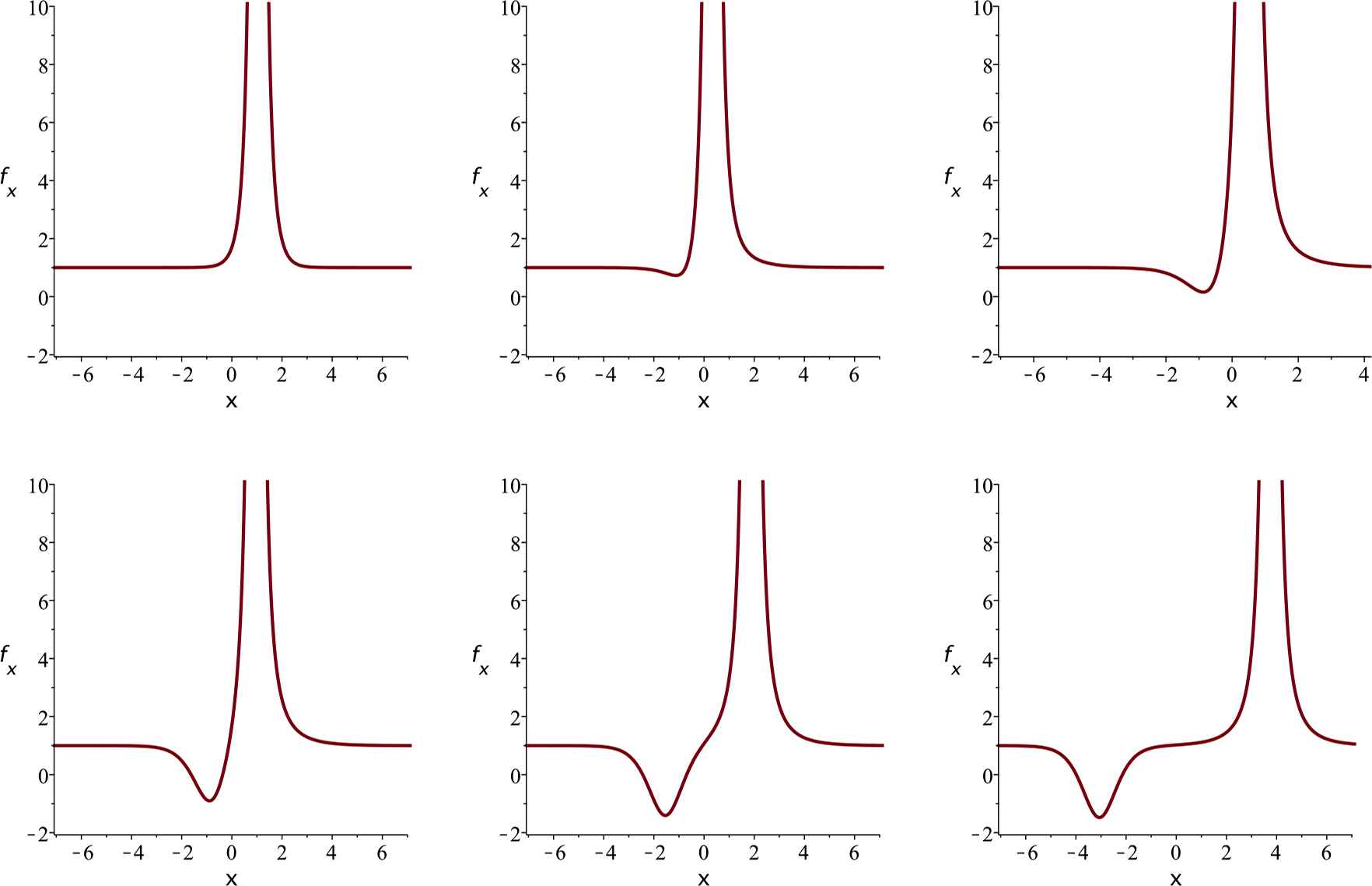

Fig. 2.

The expulsion of soliton by a singular soliton. Parameter values are β = 1 and θ = −1, so λ1, λ2, λ3 ≈ −1.88, 0.35, 1.53, and C1 = C2 = 1, C3 = −1. Plots of fx, displayed for times t = −3, 0, 0.2, 0.5, 1,2.

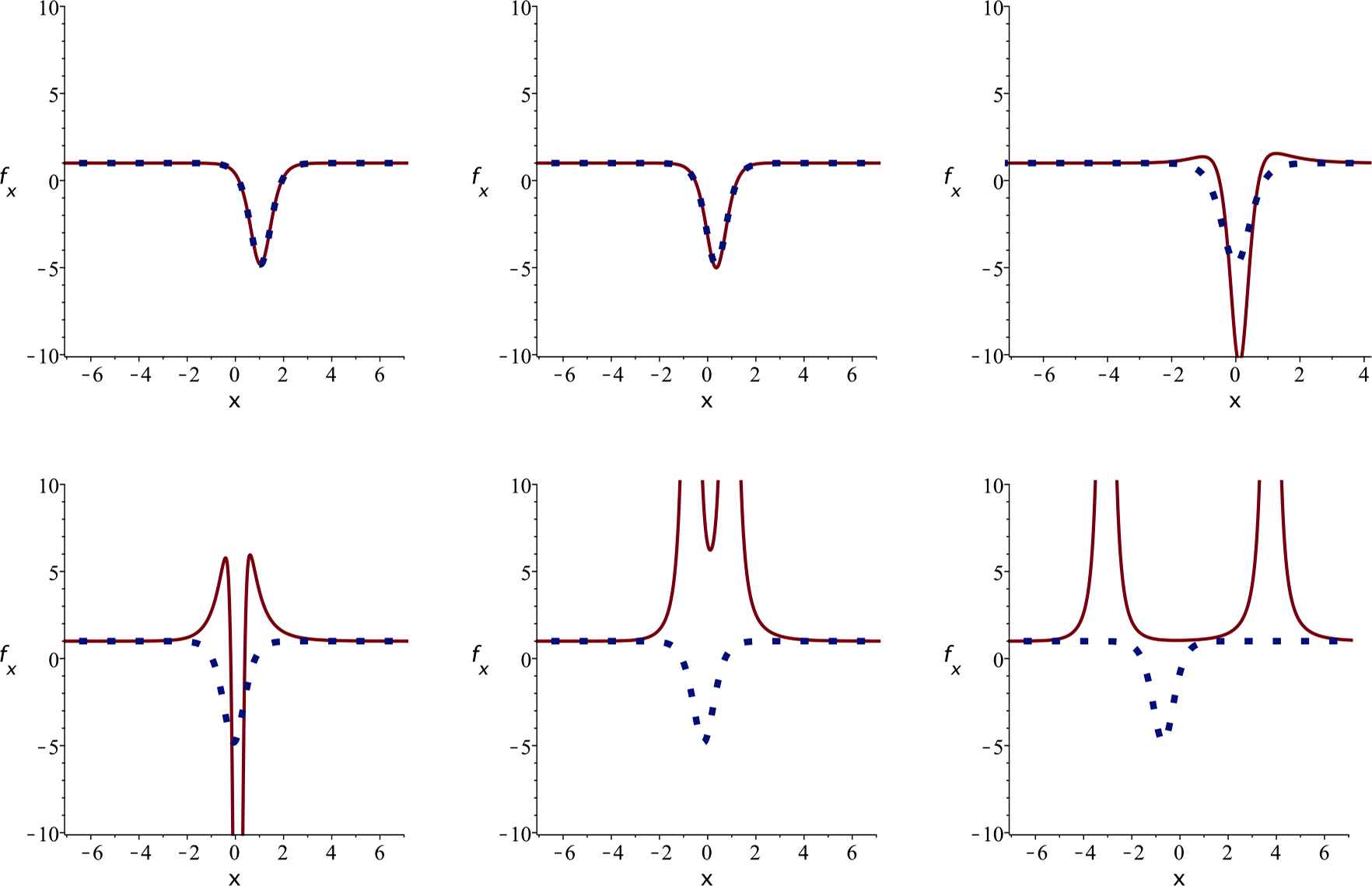

Fig. 3.

The splitting of a perturbed soliton into two singular solitons. Parameter values β = 1 and θ = −1, so λ1, λ2, λ3 ≈ −1.88, 0.35, 1.53, and C1 = C3 = 1, C2 = −1. Plots of fx, displayed for times t = −3, −1, 0, 0.2, 0.5, 2. The blue, dotted plots show the unperturbed soliton solution, given by the same parameters except C2 = 0.

4. Conservation laws

To find the conservation laws of aN, it is just necessary to observe that (2.6) has the form of a conservation law. Thus v, which is the solution of (2.4)(2.5) and depends on θ, provides a generating function for (densities of) conservation laws. Similar to what was observed for the Camassa-Holm equation in [22], this can be expanded in various different ways to obtain series of conservation laws.

For large |θ|, the solution v to (2.4) can be expanded in an asymptotic series of the form


Each of the coefficients vi is the density for a conservation law. The first few coefficients are given as follows:


Further terms can be computed using the recurrence relation


So, for example


Here f5x, f6x,... denote 5th, 6th etc. derivatives of f with respect to x. For each i = 1,2,... vi, is the density F of a conservation law Ft + Gx = 0. For i = 1,2,3,4,6 the conservation laws are evidently trivial (F = Hx, G = −Ht for some H). For i = 5,7 we obtain the following conservation laws (after eliminating trivial parts):


Note that there are 3 possible series for v, corresponding to the 3 possible choices of v−1. The dependence of v1, v2,... on the choice of v−1 is clear, and can be verified to be consistent with the recursion relation. We denote the three associated asymptotic series by v(1), v(2), v(3). If we define σ = v(1) + v(2) + v(3), then σ has asymptotic series i=13v3iθi . However, if we define

then it can be verified (using (2.4) for each of the functions v(1),v(2),v(3)) that

It follows that v3i is a total x derivative for all i, and the associated conservation laws are trivial. We also conjecture that v2i is a total x derivative for all i, though do not yet have a direct proof of this.

Another possible expansion of v, this time for small |θ|, is


The coefficients of this series are obtained by plugging (4.4) into (2.5), and involve derivatives with the respect to t, which can not be eliminated. We call it the “expansion in the t direction”, as opposed to the (4.1) which is the “expansion in the x direction”. The first few coefficients of (4.4) are


For each i = 1, 2,..., wi is the density of a conservation law. The conservation law arising from w2 is trivial, but from w1, w3, after elimination of some trivial parts, we obtain the following conservation laws:


5. Symmetries

By the direct computation of the first order generalized symmetries [23] of aN we obtain

corresponding to invariance of aN under translations of f, x, t and a scaling symmetry.

Following the ideas of [24], and with some inspiration from formulas that appeared in [10, 21], it is possible to find a generating function for symmetries of aN in terms of mulitple solutions of the BT (2.4)(2.5):


Here A is defined by (4.2). It is straightforward to check directly that η = Q satisfies the linearized aN equation


To generate local symmetries for aN from (5.1) we take v(1), v(2), v(3) to be given by the 3 possible asymptotic expansions of v of form (4.1), as given in the previous section. Substitution of these asymptotic expansions into Q and expansion in inverse powers of θ1/3 gives an infinite hierarchy of symmetries. The first two symmetries in this hierarchy are η(f), η(x). From the higher order terms we obtain


Observe that η(5) defines the potential Sawada-Kotera flow (1.7).

We have not succeeded in using the second expansion (4.4) of v in (5.1) to generate a second hierarchy of symmetries, as the coefficients in this expansion are unique. However, we note that there are other equations for which such an approach is possible. Specifically, for the Camassa-Holm equation

the system of the BT for the Camassa-Holm equation is

One possible expansion of s, the “expansion in the x direction”, is in the form


There are two versions of this expansion (related by replacing α1/2 by −α1/2), and these were used in [25] to construct a hierarchy of symmetries. However there is also an “expansion in the t direction”:


The first few coefficients are


Once again, there are two versions of this expansion, corresponding to the choices s0 = ±1. A generating symmetry for the Camassa-Holm equation was found in [25] and its form is


In [25] the two expansions of s of form (5.6) were used in this formula to produce a hierarchy of symmetries. A second hierarchy is found by using the two expansions of form (5.7). The first few symmetries we get are


This hierarchy of symmetries is different from the one found in [25]. We note that this is a hierarchy of hyperbolic, not evolutionary, symmetries. These symmetries have already been found, for example, in [26]. The existence of hierarchies of such symmetries has been also discussed in [27]. In parallel to the fact that we have been able to find two hierarchies of conservation laws for aN, we expect there to be two hierarchies of symmetries. But finding the second hierarchy remains an open problem.

6. Painlevé Property

It is lengthy, but straightforward, to verify that aN has the WTC Painlevé property [28]. There are formal series solutions about the singularity manifold ϕ (x,t) = 0 of the form

with ϕ, f1, f6 arbitrary, except that ϕx and ϕt must not vanish. As usual, the truncated Painlevé series (see [29]), which has the simple form
gives the BT, cf. equations (2.3) and (2.7).

7. Scaling Reduction

aN has the obvious scaling invariance fλ f, xλ∂x, tλ−3t. Thus we look for a reduction to an ordinary differential equation by taking


This gives the third order equation


This equation has the Painlevé property, with a pole series

with z0, F1, F6 arbitrary, except that z0 ≠ 0. The equation has a first integral

Note that if F satisfies the third order equation (7.1) then E is constant. But in the other direction, E being constant implies that either F satisfies the third order equation (7.1) or F = C1 +C2z3/2 where C1, C2 are constants. Remarkably, the functions

also satisfy the third order equation (7.1), and illustrate the fact that although (7.1) has the Painlevé property, solutions can have a non-pole singularity at z = 0. These give rise to the solutions f=112x±2xtof aN.

By the substitution

equation (7.2) is brought to the form

This is a special case of equation SD-I.b, equation (5.5) in [30], which can be solved, as explained in [30], in terms of either Painlevé III or Painlevé V transcendents.

8. Hirota form


in aN we obtain the Hirota bilinear form

See, for example, [31] for notation. This has an unusual form, in that as far as we are aware, most studies of equations in Hirota form assume the form P(Dx, Dt,...)ϕ · ϕ = 0 with P(0, 0,...) = 0 (see, for example, [31], equation (17)). However, by substituting

where C(t) is an arbitrary function, we obtain

Modulo rescalings, this is the Hirota form of the Hirota-Satsuma equation [3133]. The basic soliton solution is

where a, b, c are constants with

As observed in our previous discussion of soliton solutions, the speed c is restricted by the requirement 1βc<β. The two soliton solution is


Here we have written the phase shift factor A in a form in which it is clear that at least in the case that both c1 and c2 are positive, A is positive, thus guaranteeing a non-singular two soliton solution of aN. Note that for certain values of the parameters A can either vanish, or be ill-defined, as the denominator vanishes. It can be checked that this happens if and only if


In this case the two soliton solution reduces to the “merging soliton” solutions described in section 3. The two soliton solution extends to multisoliton solutions in the usual way for integrable equations of KdV type [31,32]. So, for example, the three soliton solution is, in the obvious notation,


We have not yet succeeded in determining whether there exist nonsingular superpositions of merging solitons and regular solitons.

9. Conclusion

In this paper we have researched the aN equation, an integrable nonlinear equation, which is notable for taking a particularly simple form, with just a single, quadratic nonlinear term, and for having relationships with various other significant integrable equations. Among the interesting properties of this equation we would mention the existence of merging solitons, the fact that some of the soliton solutions are unstable, which can be demonstrated very effectively, and the existence of two infinite hierarchies of conserved quantities. Among the matters that we have not been able to resolve fully and which merit further research, we would mention the lack of a superposition principle for the Bäcklund transformation, the need to establish the stability of other solutions, and the need for a fuller exploration of the space of solutions, particularly to determine if there are nonsingular ways to superpose merging solitons. Also, we have only been able to give a single hierarchy of local symmetries so far. We note that the aN equation is not in evolutionary form, which limits its potential application; but its superficial simplicity and rich properties make it notable, nonetheless.
