1. INTRODUCTION

Most of the controllers in industries have fixed control parameters. However, the controllers cannot obtain good control performances against time-variant systems. To tackle this problem, self-tuning controllers [1,2] have been proposed. In these controllers, control parameters are tuned adaptively and can maintain a good control performance to time-variant systems. However, it is difficult to use these methods to actual systems because of low reliability of an on-line estimator. In addition, it is not preferred to tune many control parameters simultaneously in terms of the safeness of a closed-loop system.

Especially in process industries, Proportional–Integral–Derivative (PID) controllers [3] have been widely used. The reasons why PID controllers have been widely applied include that: (1) PID controllers have simple structure, and (2) physical meanings of the control actions are clear. Therefore, some self-tuning PID control schemes [2] have been proposed.

In this work, a performance-adaptive controller that has two stages of PID parameters tuning mechanisms is proposed. One of the tuners is a 1-parameter tuner which calculates only the proportional gain using the recursive least squares. The proportional gain depends only on a static gain of the controlled object, thus the reliability of an identification of the proportional gain is higher than the other gains. The other is a PID parameters tuner using ordinary least squares. When the 1-parameter tuner cannot maintain a good control performance, the PID parameters tuner determines new PID parameters to maintain a desired control performance. The effectiveness of the proposed method is evaluated by an experimental example.

2. THE TUNING METHOD OF PID PARAMETERS

The PID parameters tuning method is described at this section. A velocity-type PID controller in discrete time domain is given as follows:

where k_c, T_i, and T_d are the proportional gain, the integral time and the derivative time, respectively. Δ denotes the differencing operator defined by Δ := 1–z⁻¹, where z⁻¹ is the shift operator which means z⁻¹ y(k) = y(k–1). In addition, u(k) is the input signal and y(k) is the output signal. Furthermore, T_s denotes the sampling time, and e(k) denotes the output error signal defined by e(k) := r(k) – y(k) where r(k) denotes the reference signal. Equation (1) can be rewritten as where K_P, K_I, and K_D are proportional, integral, and derivative gains, respectively. By assuming K_I ≠ 0, Equation (3) can be obtained by rewriting Equation (2).

Generalized output Φ(k) is defined as follows:

Where coefficients a₁, a₂, and a₃ are defined as follows:

From (3) to (5), the following relationship can be obtained:

In the proposed method, it is desired to make the system output y(k) track the reference model output y_r(k) which is defined by

where d denotes the time-delay of the controlled object, and d is assumed to be known. P(z⁻¹) is given as follows: Where p₁ and p₂ are determined by following equations: σ and δ denote the rise-time and the damping coefficient, respectively, and μ is adjusted by δ. When δ = 0, G_m(z⁻¹) indicates the Binomial model, and when δ = 1, G_m(z⁻¹) indicates the Butterworth model. In practice, the value of δ is considered to design between 0 and 2, and by using bigger δ, the response becomes oscillating.

The evaluation function J is defined as follows:

where N denotes the number of data and ε (k) is defined as follows: By minimizing the evaluation function J, the following relationship can be obtained: From Equation (4), parameters to be optimized are a_i (i = 1, 2, 3). When the minimization has been finished, it leads the following relationship: Therefore, the reference response is realized by using the optimized a_i. To apply a PID controller, PID parameters are derived from a_i as follows:

3. DESIGN OF A PERFORMANCE DRIVEN PID CONTROLLER

4. AN EXPERIMENTAL RESULT

The usefulness of the proposed self-tuning method is experimentally evaluated on a pilot-scale temperature control system. Figure 1 shows an appearance of the controlled object, and the schematic figure is illustrated in Figure 2. In this experimental system, two heaters are secured on a steel plate. These heaters work synchronously, corresponding to the input signal from the computer. One thermo-couple is also prepared, and the measured temperature of the steel is sent to the computer as the system output signal. The control objective is to regulate the temperature of the steel to the desired reference signal by manipulating the power of the heater. In this experimental result, the sampling time T_s is 1 s and the reference signal is changed alternately from 70 (°C) in the temperature and 100 (°C).

Figure 1

Appearance of the experimental temperature control system.

Figure 2

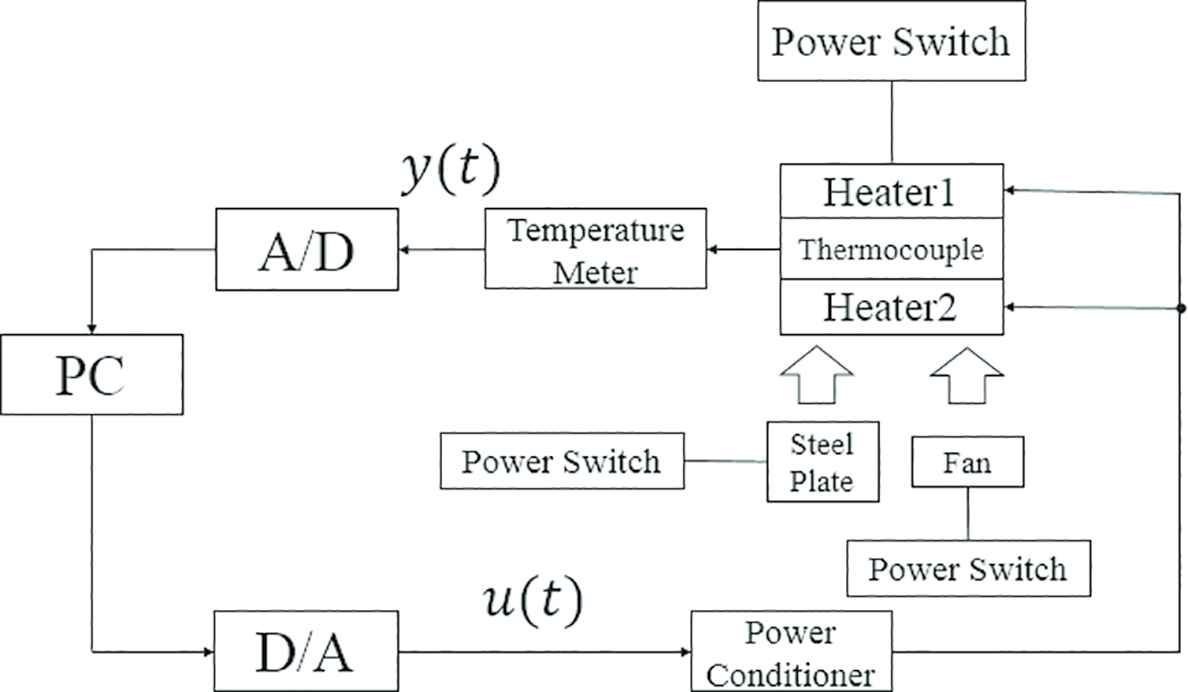

Schematic figure of the experimental temperature control system.

To simulate heater deterioration, the relationship between controlled input u(k) and the voltage of the power conditioner v(k) is varied as follows:

The control result by using the proposed performance-adaptive controller is shown as Figure 3, and the trajectories of PID parameters corresponding to Figure 3 is shown in Figure 4. In this result, the initial PID parameters were determined by using the PID tuning method described at Section 2 as follows:

Figure 3

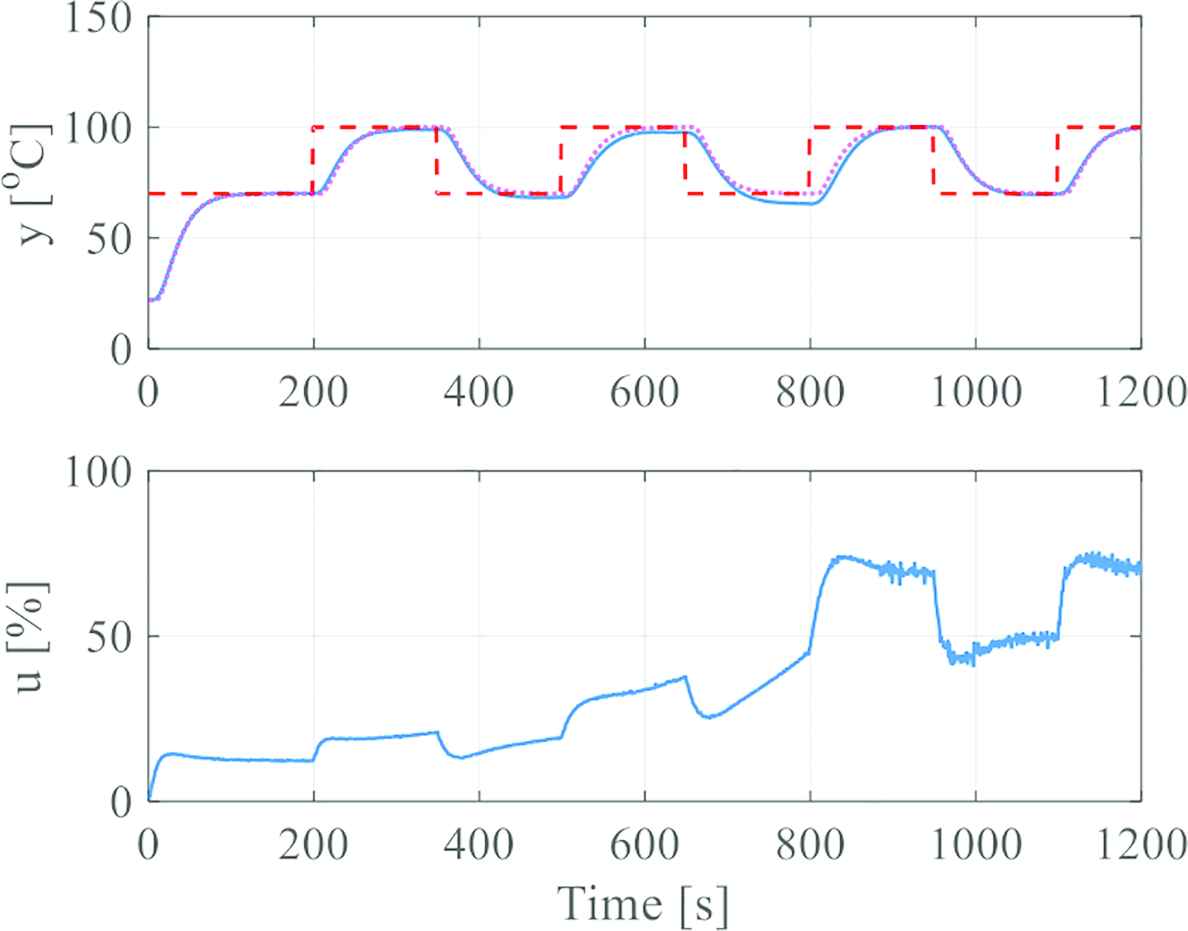

Experimental control result by using the proposed control method.

Figure 4

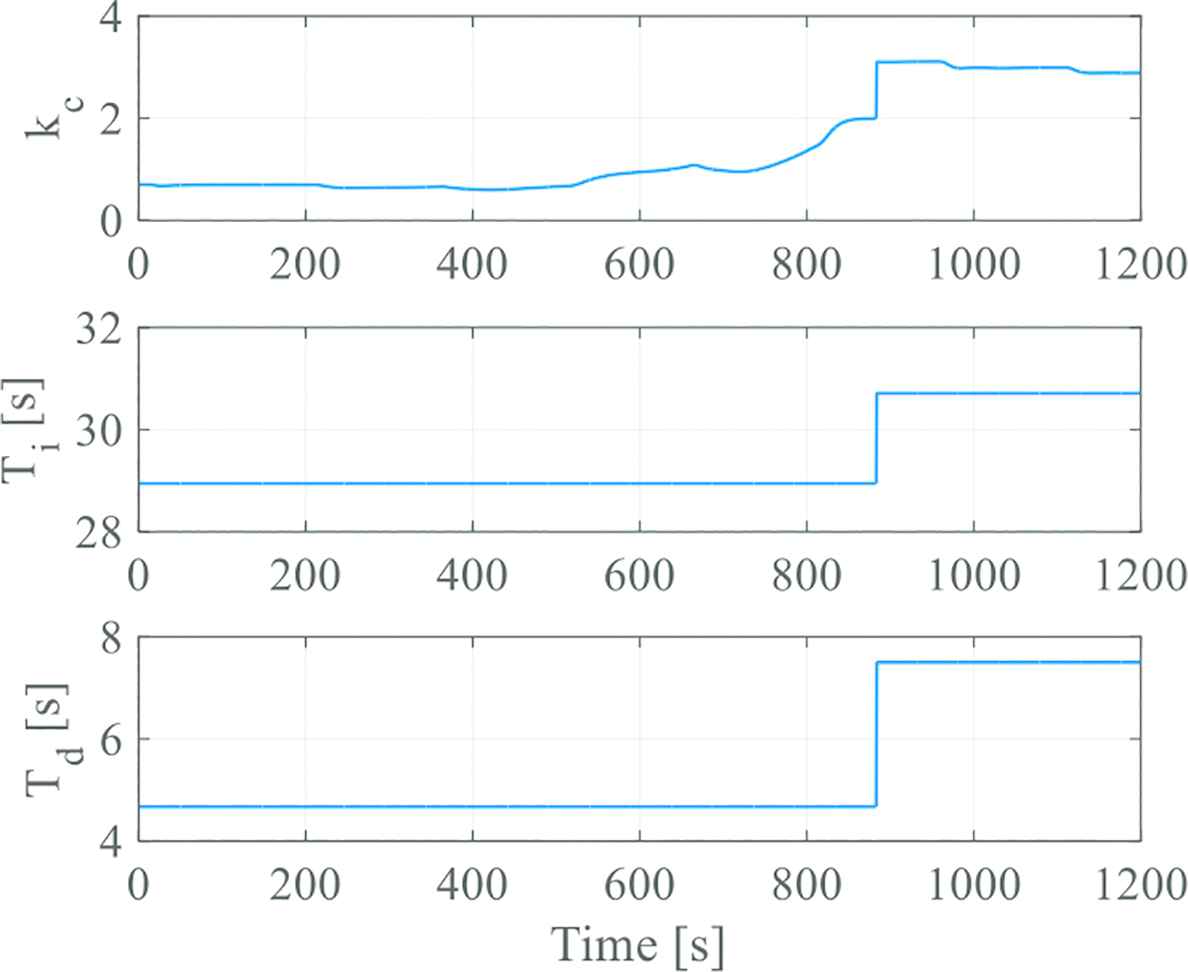

Trajectories of the PID parameters corresponding to the Figure 3.

Parameters of the proposed method were set as follows: α = 1, β = 0.2, d = 8, w(k) = 0.995, σ = 30, and δ = 0. From Equation (26), initial estimated parameter was determined as θ^(0)=41.3 .

Figure 3 indicates that the control performance gradually deteriorated after 200 steps. Figure 4 shows that only k_c was tuned before 863 steps, and all PID parameters are tuned at 863 steps. The proportional gain k_c became larger on the 1-parameter tuning period. Considering that the system gain became smaller on the period as Equation (25), the variation of the k_c is correct. In addition, after the tuning of the all parameters, the trajectory of the control output is likely the same as the reference trajectory.

5. CONCLUSION

In this paper, a performance-adaptive 1-parameter tuning PID controller is proposed, and effectiveness of the proposed method is evaluated by the pilot-scale temperature control system. The proposed performance adaptive controller has two stages of PID parameters tuning mechanisms. The features of the proposed method are summarized as follows:

• •

  The proposed method is the 1-parameter tuning method, and only k_c is tuned.

• •

  All PID parameters are retuned only when control performance deteriorates.

• •

  Both the 1-parameter tuning and the retuning method of all PID parameters are based on the same PID tuning scheme.

From these characteristics, the proposed method can be easily understood. However, the effectiveness of the 1-parameter tuning in this paper does not be proved analytically. This is a future work.
