# Tracking/Robust Trade-off Design of a Sampled-data PID Controller for Second-order Plus Dead-time Systems

- DOI
- 10.2991/jrnal.2018.5.2.10How to use a DOI?
- Keywords
- PID control; Sampled-data system; SOPDT system; Sensitivity function; Robust
- Abstract
In this paper, we propose a new design method of a second-order plus dead-time (SOPDT) sampled-data Proportional-Integral-Derivative (PID) control system, where the continuous-time plant is controlled using the discrete-time controller. The proposed control system is designed so that the tracking performance is optimized subject to the stability margin constraint. In the present study, the servo and regulation optimal controllers are designed. Finally, the effectiveness of the proposed method is demonstrated through numerical examples.

- Copyright
- Copyright © 2018, the Authors. Published by Atlantis Press.
- Open Access
- This is an open access article under the CC BY-NC license (http://creativecommons.org/licences/by-nc/4.0/).

## 1. Introduction

Proportional-Integral-Derivative (PID)^{1,2} control has been widely used in industry. Since the performance of PID control depends on the tuning parameters, additional tuning methods have been studied recently. Although the stability of a control system is critical, its tracking performance is also important. However, because of the trade-off relationship between stability and tracking performance, they cannot be optimized simultaneously. Arrieta and Vilanova^{3,4} proposed a simple PID tuning method that optimizes the tracking performance subject to a prescribed robust stability. In this method, the optimal PID parameters are decided based on a first-order plus dead-time (FOPDT) continuous-time system. In order to design a discrete-time control system, Tajika et al.^{5} proposed a design method for controlling a discrete-time FOPDT system. The present study discusses a design method of the PID controller for controlling a second-order plus dead-time (SOPDT) system, in which the continuous-time plant is controlled using the discrete-time controller. In the proposed method, both servo and regulation optimized control methods are designed. Finally, the effectiveness of the proposed method is demonstrated through numerical examples.

## 2. Description of the Control System

Consider the continuous-time controlled plant given as follows:

*K*is the plant gain,

*ω*

_{n}is the natural angular frequency,

*ζ*is the damping coefficient, and

*L*is the dead-time. In the present study, we discuss the design method of the sampled-data control system using the following discrete-time PID control law:

*u*(

*k*) is the control input,

*y*(

*k*) is the plant output,

*e*(

*k*)(=

*r*(

*k*) −

*y*(

*k*)) is the control error and

*r*(

*k*) is the reference. Moreover,

*T*

_{s},

*K*

_{p},

*T*

_{i}and

*T*

_{d}are the sampling time, the proportional gain, the integral time, and the differential time, respectively.

## 3. Definition of the Optimization Problem

As the constraint condition, the stability margin is defined using the sensitivity function, and the evaluation function for the tracking performance is also defined.

## 3.1. Constraint condition

The sensitivity function *S*_{f}(*z*^{−1}) is defined as follows:

*P*

_{d}(

*z*

^{−1}) is the discrete-time controlled plant. Using the sensitivity function, the constraint condition is defined as follows:

*M*

_{s}is the maximum value of the sensitivity function, and

^{1}. The smaller the value of

*M*

_{s}, the larger the stability margin. On the other hand, the larger the value of

*M*

_{s}, the better the tracking performance, although the stability margin becomes small.

## 3.2. Evaluation function

In the present study, the evaluation function *J* is defined as the integral absolute error:

## 4. Controller Design

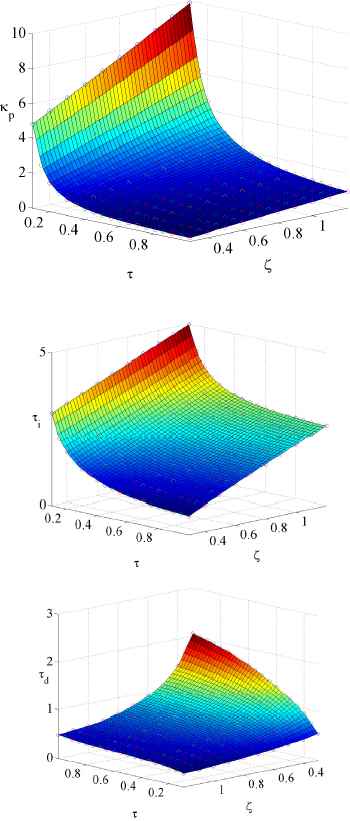

The PID parameters are optimized for a normalized system, and hence, dimensionless parameters are defined as *τ* = *Lω*_{n}, *h* = *T*_{s}*ω*_{n}, *κ*_{p} = *K*_{p}*K*, *τ*_{i} = *T*_{i}*ω*_{n}, and *τ*_{d} = *T*_{d}*ω*_{n}. The range of these parameters are set as 0.1 ≤ *τ* ≤ 1.0, 0.01 ≤ *h* ≤ 0.10, and 0.3 ≤ *ζ* ≤ 1.2. In the proposed method, the constrained optimal problem is preliminarily solved for a designated finite plant, which is defined by discrete *τ*, *h*, and *ζ*, and the data set in which the optimal normalized PID parameters for discrete *τ*, *h*, and *ζ*, is obtained. In Fig. 1, the obtained normalized PID parameters are plotted by ∘, where
*T*_{s} = 0.01.

The desired normalized PID parameters for an arbitrary plant are decided by the linear interpolation from the data set. Practically speaking, the interpolated parameters are calculated using the nearest four points, as shown in Fig. 2. From this figure, the vector equation is obtained as follows:

*τ*

^{O}, ζ

^{O},

*h*

^{O},

*τ*

^{A}, ζ

^{A},

*h*

^{A},

*τ*

^{B}, ζ

^{B},

*h*

^{B},

*τ*

^{C}, ζ

^{C},

*h*

^{C},

*τ*

^{P}, ζ

^{P},

*h*

^{P}]. Then, Eq. (6) is rearranged as follows:

*τ*

^{P}, ζ

^{P},

*h*

^{P}] are obtained, where α, β, and γ are decided based on the following equations:

*M*

_{s}is calculated for both the preliminarily solved and interpolated systems using the approximation method, and the obtained

*M*

_{s}values are shown in Table 1. This result reveals that the proposed decision method is sufficiently effective.

Servo design |
Regulation design |
|||||
---|---|---|---|---|---|---|

Min | Mean | Max | Min | Mean | Max | |

1.4 | 1.398 | 1.403 | 1.440 | 1.399 | 1.403 | 1.453 |

1.6 | 1.599 | 1.605 | 1.668 | 1.597 | 1.605 | 1.663 |

1.8 | 1.790 | 1.807 | 1.909 | 1.798 | 1.807 | 1.897 |

2.0 | 1.996 | 2.010 | 2.156 | 1.997 | 2.009 | 2.137 |

Obtained *M*_{s}

## 5. Numerical Simulation

In this section, the effectiveness of the proposed method is confirmed.

## 5.1. Control performance for various values of *ζ*

First, the control performance is confirmed for *ζ*. The controlled plant is defined as *K* = 4.2, *ω*_{n} = 1.13, and *L* = 0.44 in Eq. (1), and *T*_{s} = 0.018. Here, we consider four pattern damping coefficients: *ζ*^{1} = 0.451, *ζ*^{2} = 0.69, *ζ*^{3} = 1.0, and *ζ*^{4} = 1.199. The control results are shown in Fig. 3. The reference value is set to 1.0, and the unit step disturbance signal is added after 20 s. Figure 3 shows that the proposed method is effective for under-and over-damping systems.

## 5.2. Verification of stability margin

Next, the stability margin is confirmed. Here, the controlled plant is defined as *K* = 2.02, *ω*_{n} = 0.91, *ζ* = 0.33, and *L* = 0.98 in Eq. (1), and *T*_{s} = 0.05. After 40 s, the dynamics is changed to K = 2.6, *ω*_{n} = 1.3, *ζ* = 0.43 and *L* = 0.43 as the model variation. Furthermore,

## Conclusion

In the present study, we have proposed a new design method for controlling an SOPDT sampled-data system, where the continuous-time plant is controlled by the discrete-time PID control law. In the proposed method, the PID parameters are designed for the normalized system, and the tracking performance is optimized subject to the assigned

## Acknowledgements

The present study was supported by JSPS KAKENHI Grant Number JP16K06425. The authors would like to express their sincere thanks for the support from the Japan Society for the Promotion of Science.
