Artery Research

Volume 25, Issue Supplement 1, December 2019, Pages S164 - S164

P124 Impact of Tapering on Arterial Blood Pressure Using a One-dimensional Computational Model

Authors
Shima Abdullateef1, *, Jorge Mariscal-Harana2, Jordi Alastruey2, Ashraf Khir1
1Biomedical Engineering Research Theme, Brunel University London, Middlesex, United Kingdom
2School of Biomedical Engineering and Imaging Sciences, King’s College London, London, UK
*Corresponding author. Email: shima.abdullateef@brunel.ac.uk
Corresponding Author
Shima Abdullateef
Available Online 17 February 2020.
DOI
10.2991/artres.k.191224.150How to use a DOI?
Abstract

Aortic tapering is a known characteristic of the arterial tree affecting the development of pressure in the aorta. With tapering, the cross-sectional area of vessels decreases moving towards the periphery causing reflections to travel back to the heart. The reflection waves present in the aorta are an amalgamation of reflections from tapering, bifurcations, and mismatched mechanical properties. The difference between the contribution of tapering and of bifurcations or mechanical properties in the overall reflection is not well understood. The aim of this study is to evaluate the impact of tapering, solely, on pressure and wave intensity. We simulated the blood flow using a one-dimensional model which solves the conservation of mass and momentum equations in the time domain. The model consists of the thoracic aorta connected to a symmetrical iliac bifurcation and three-element Windkessel models as the terminal boundary conditions [1]. Different tapering angles (θ) in the physiological range, up to 1.5 degrees [2], are implemented by changing the diameter at the outlet of the aortic vessel. The area ratio between the parent and the daughter vessels and the mechanical properties are kept constant which allows for investigating the effect of tapering. As shown in Figure 1 (middle), increased tapering angle is associated with an increase in mean blood pressure due to the higher resistance in the segment, and an increase in pulse pressure due to the reduced arterial compliance. Both forward and backward compression wave amplitudes rise with the tapering angle due to higher resistance of the arterial vessel.

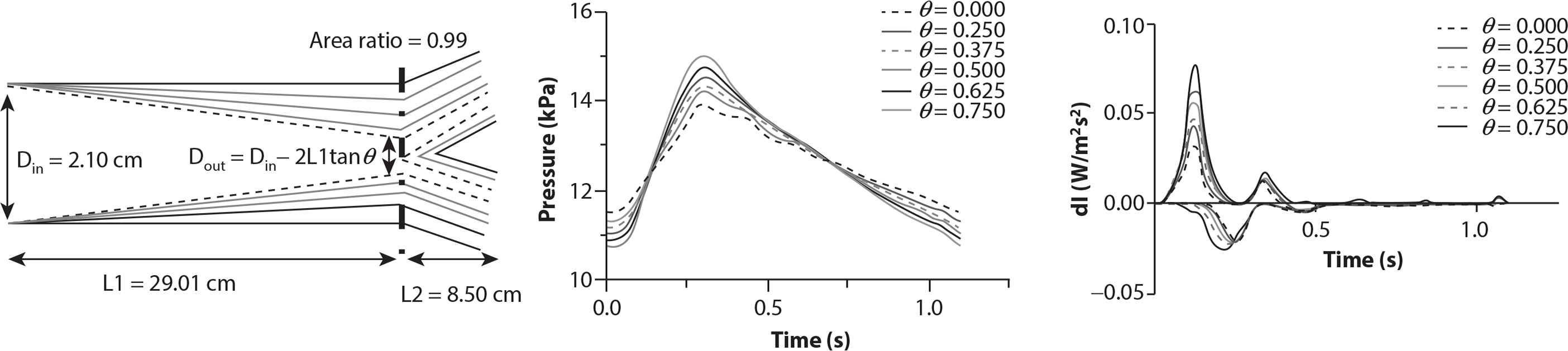

Figure 1

Schematic representation of the thoracic aorta and iliac bifurcation model (left), pressure waveforms at the inlet of the thoracic aorta (middle), and wave intensity analysis at the inlet of the thoracic aorta (right) with different tapering angles.
